Published figures
- Free height of fall
- 150 cm
- Space required
- 100 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 11.66 × 7.27 × 8.35 m
- Play capacity
- 68 users
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, aluminum, hdpe, polyethylene, rope, polyamide |
| Colours | GreyOrangePurpleseen in product image |

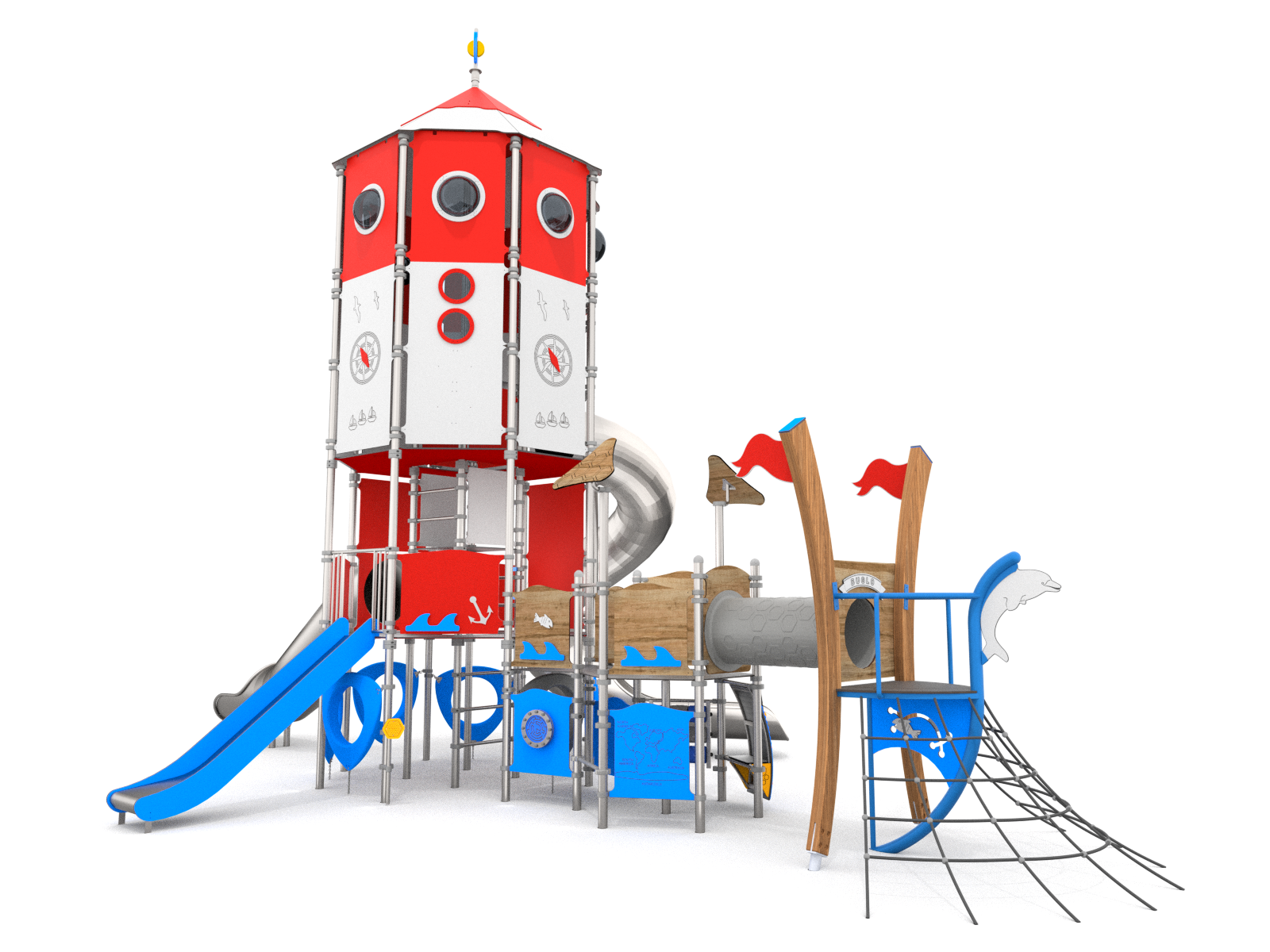

Description
Functionality: Balancing, Climbing, Courage, Grasping, Sliding, Socialization, Swinging. Assembly: Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 1095 x 1525 cm (100 m²). Materials: Slides made of stainless steel aisi304 slide panels made of hdpe polyethylene plates of the walls made of colourful triple layered 15 mm hdpe polyethylene hemispheric window with a diameter of 400 mm plates of the walls (13 mm) and platforms (10 mm) made of colourful tube slides made of stainless steel aisi304 system of connectors and clamps made of strong aluminum alloy scale 1:150 solid construction made of stainless steel asisi 304 solid and esthetic rope connectors made of injection molded polyamide the tic tac toe game is made of polyethylene rotationally molded with symbols on the form
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
