Published figures
- Free height of fall
- 150 cm
- Space required
- 48 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 5.95 × 5.25 × 3.51 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, powder coated steel, aluminium, wood, wooden, hdpe, polyethylene, hpl, rope, ropes, polyamide, steel |
| Colours | YellowGreyBeigeGreenseen in product image |

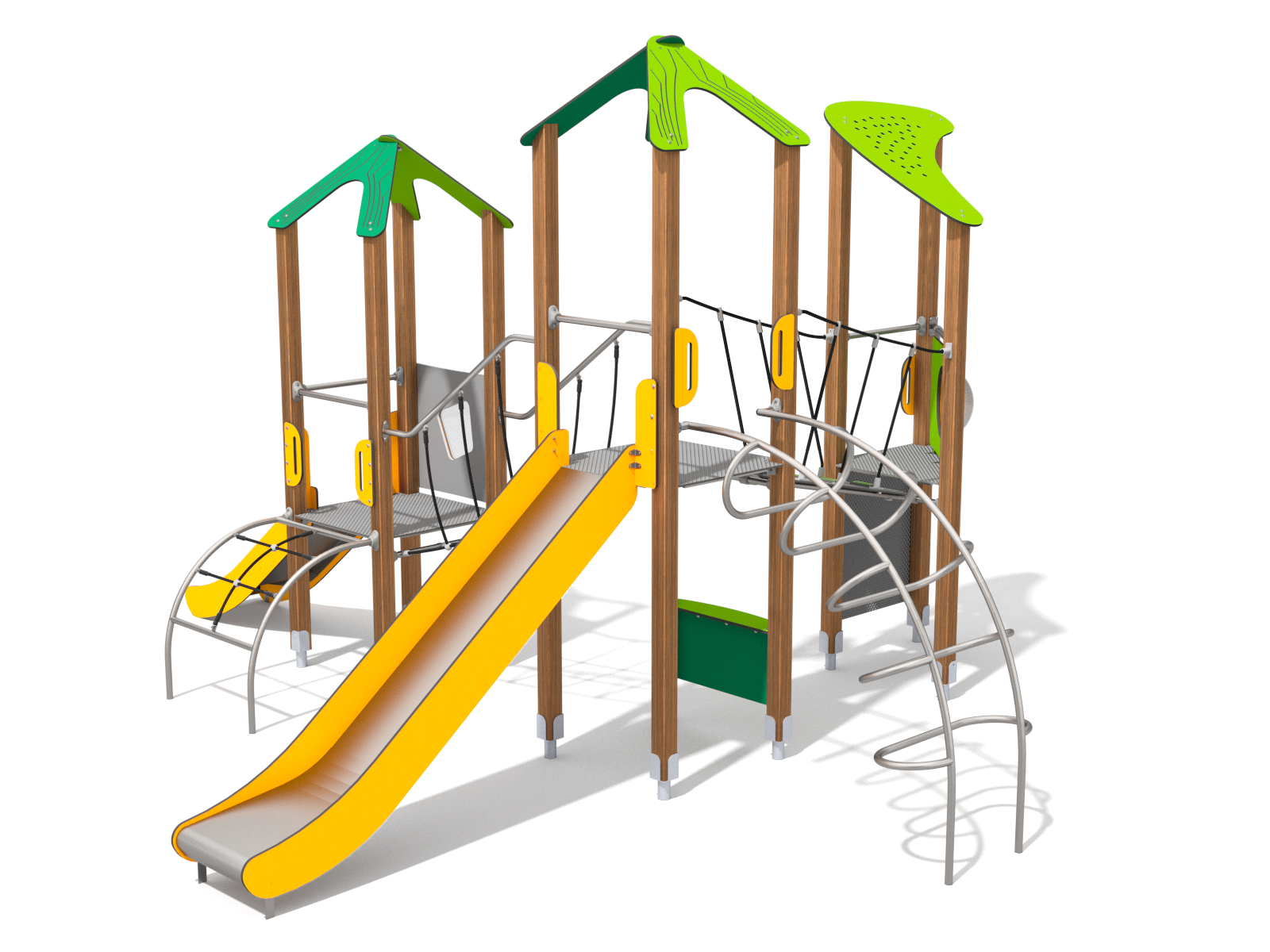

Description
Functionality: Balancing, Climbing, Sliding, Socialization. Assembly: Ceiling mounting, Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 875 x 945 cm (48 m²). Materials: Patented system of connectors and clamps made of strong aluminium alloy. Slides made of stainless steel aisi 304. Metal sheet with a thickness of 2 mm formed in a cnc. Anti-slip anthracite 10mm hpl platform plate with a very high resistance to weather conditions and attrition. Climbing rocks made of chippings and colourful polyester. Plates of the walls made of colourful triple layered 15 mm hdpe polyethylene, in the highest quality, totally damp-proof. Rope endings pressed in a sleeve made of durable aluminium alloy. System of connectors and clamps made of strong aluminium alloy. Polipropylene ropes ppmultisplit type with a steel core and a dimeter of 16 mm. Connecting elements like screws, nuts, washers made of stainless steel. Solid and esthetic rope connectors made of injection molded polyamide. Scale 1:100 soft conifer wood coreless, glued in layers with polyurethane glues, totally resistant to water. Wooden posts anchored to the ground with powder galvanized and powder coated steel anchors.
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
