Published figures
- Free height of fall
- 120 cm
- Space required
- 87 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 9.30 × 7.60 × 3.21 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, powder coated steel, aluminium, wood, wooden, hdpe, polyethylene, hpl, rope, ropes, polyamide, steel |
| Colours | GreyGreenYellowseen in product image |

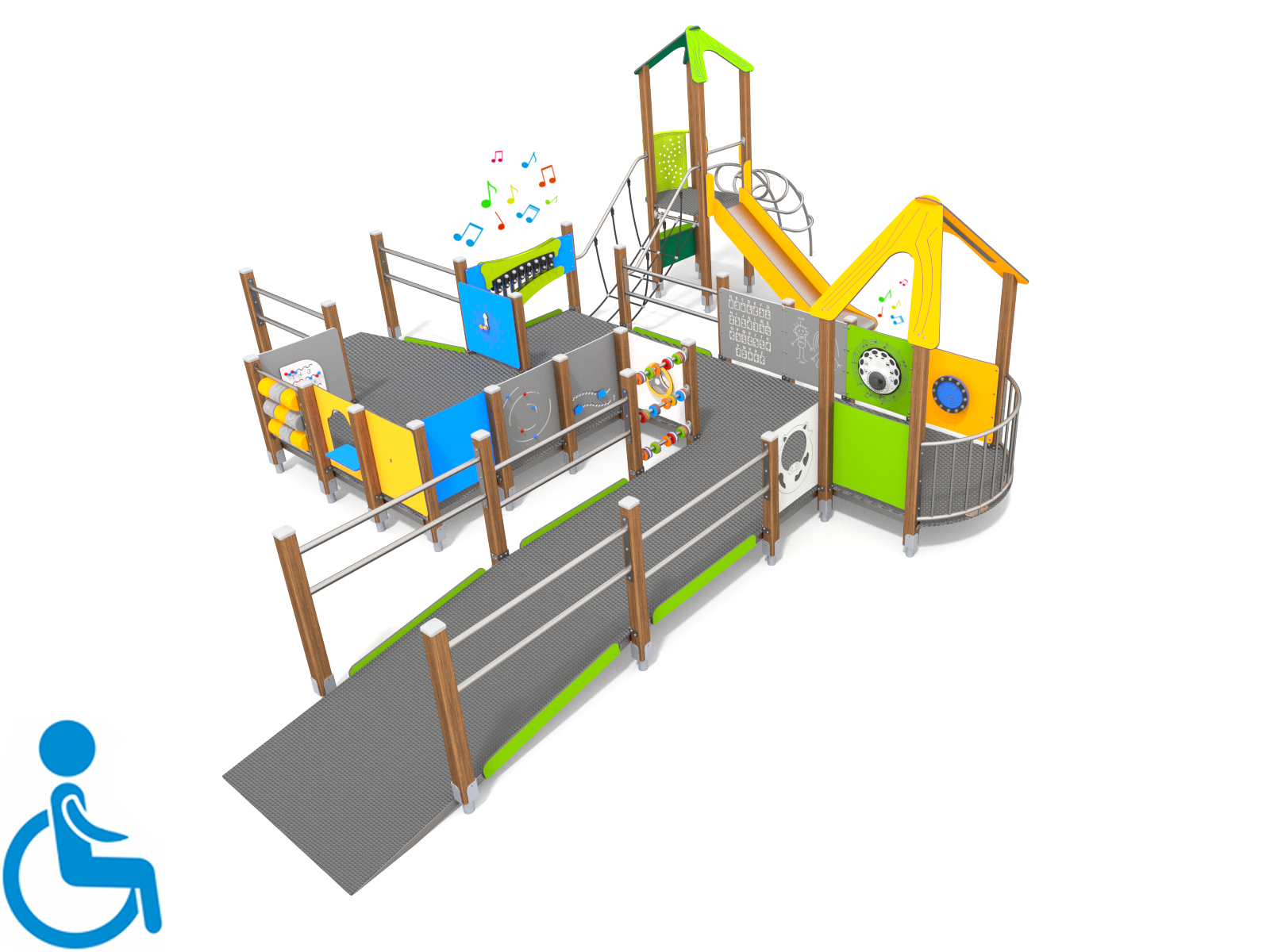

Description
Functionality: Balancing, Climbing, Sensory Integration, Sliding, Socialization. Assembly: Ceiling mounting, Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 1230 x 1060 cm (87 m²). Materials: Soft conifer wood 90 x 90 mm, coreless, glued in layers with polyurethane glues, totally resistant to water. Patented system of connectors and clamps made of strong aluminium alloy. Slides made of stainless steel aisi 304. Metal sheet with a thickness of 2 mm formed in a cnc technique. Anti-slip anthracite 10mm hpl platform plate with a very high resistance to weather conditions and attrition. Plates of the walls made of colourful triple layered 15 mm hdpe polyethylene, in the highest quality, totally damp-proof. System of connectors and clamps made of strong aluminium alloy. Solid and esthetic rope connectors made of injection molded polyamide. Polipropylene ropes ppmultisplit type with a steel core and a dimeter of 16 mm. Rope endings pressed in a sleeve made of durable aluminium alloy. Perforated steel sheet galvanised and powder coated with polyester paint qualicoat attested. The tic tac toe game is made of polyethylene rotationally molded with symbols on the form. Scale 1:100 wooden posts anchored to the ground with powder galvanized and powder coated steel anchors.
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
