Published figures
- Free height of fall
- 90 cm
- Space required
- 31 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 5.17 × 1.31 × 2.12 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, powder coated steel, aluminium, wood, wooden, polypropylene, polyethylene, ropes, steel |
| Colours | GreyYellowGreenseen in product image |
Description

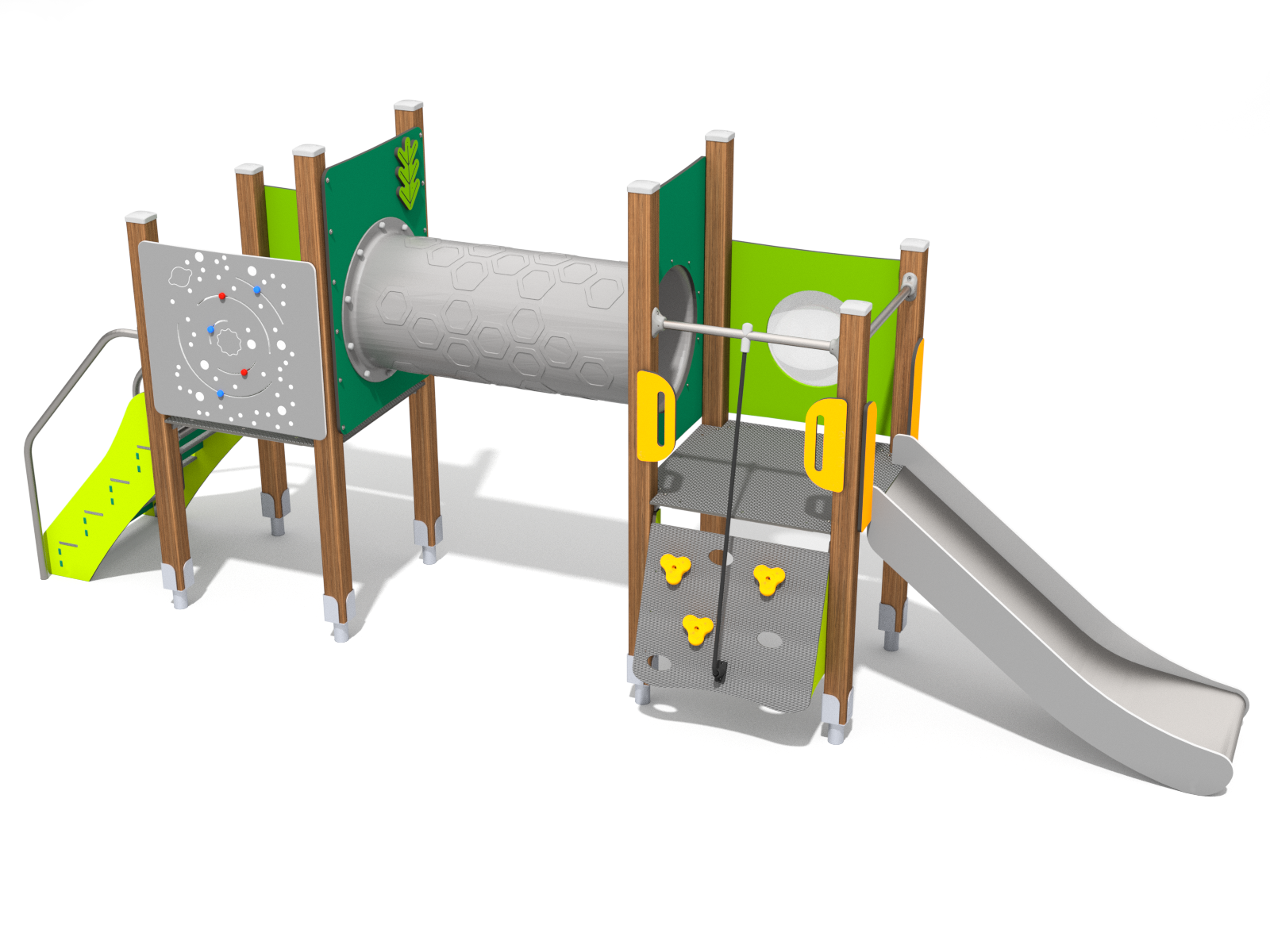

Functionality: Balancing, Climbing, Sliding, Socialization. Assembly: Ceiling mounting, Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 867 x 431 cm (31 m²). Materials: Climbing rocks made of chippings and colourful polyester resin. Polypropylene ropes pp-multisplit type with a steel core and a diameter of 16 mm. Hemispheric window with a diameter of 400 mm. Slides made of stainless steel aisi 304. Metal sheet with a thickness of 2 mm formed in a cnc technique. Tube made of ldpe polyethylene rotationally molded with the inner diameter of 53,3 cm and the length of 125 cm. Scale 1:100 soft conifer wood coreless, glued in layers with polyurethane glues, totally resistant to water. System of connectors and clamps made of strong aluminium alloy. Wooden posts anchored to the ground with powder galvanized and powder coated steel anchors.
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
