Published figures
- Free height of fall
- 150 cm
- Space required
- 102 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 12.50 × 6.91 × 4.53 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, powder coated steel, aluminium, wood, wooden, hdpe, polyethylene, polypropylene, hpl, rope, ropes, polyamide, steel |
| Colours | YellowGreyGreenBlueseen in product image |
Description

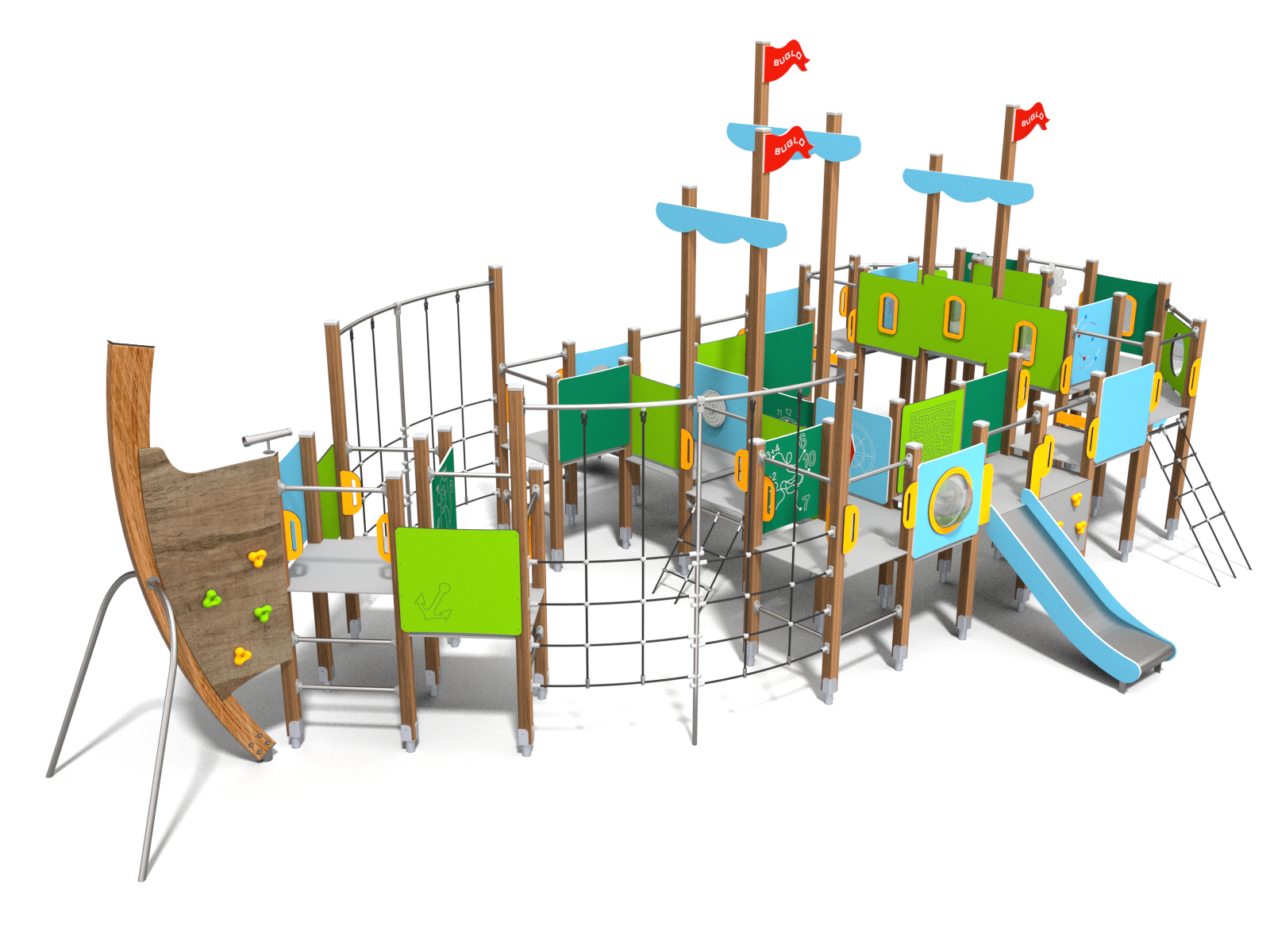

Functionality: Balancing, Climbing, Sensory Integration, Sliding, Socialization. Assembly: Ceiling mounting, Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 1600 x 1091 cm (102 m²). Materials: Hemispheric window with a diameter of 400 mm. Slides made of stainless steel aisi 304. Metal sheet with a thickness of 2 mm formed in a cnc technique. Anti-slip anthracite 10mm hpl platform plate with a very high resistance to weather conditions and attrition. Scale 1:150 plates of the walls made of colourful triple layered 15 mm hdpe polyethylene, in the highest quality, totally damp-proof. Solid and esthetic rope connectors made of injection molded polyamide. Polypropylene ropes pp-multisplit type with a steel core and a diameter of 16 mm. System of connectors and clamps made of strong aluminium alloy. Soft conifer wood coreless, glued in layers with polyurethane glues, totally resistant to water. Wooden posts anchored to the ground with powder galvanized and powder coated steel anchors. 8070
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
