Published figures
- Free height of fall
- 210 cm
- Space required
- 52 m²
- Age range
- 3–12 years
- Dimensions (L × W × H)
- 8.91 × 1.95 × 3.70 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, powder coated steel, aluminium, wood, wooden, hdpe, polyethylene, hpl, rope, ropes, polyamide, steel |
| Colours | GreyYellowGreenseen in product image |

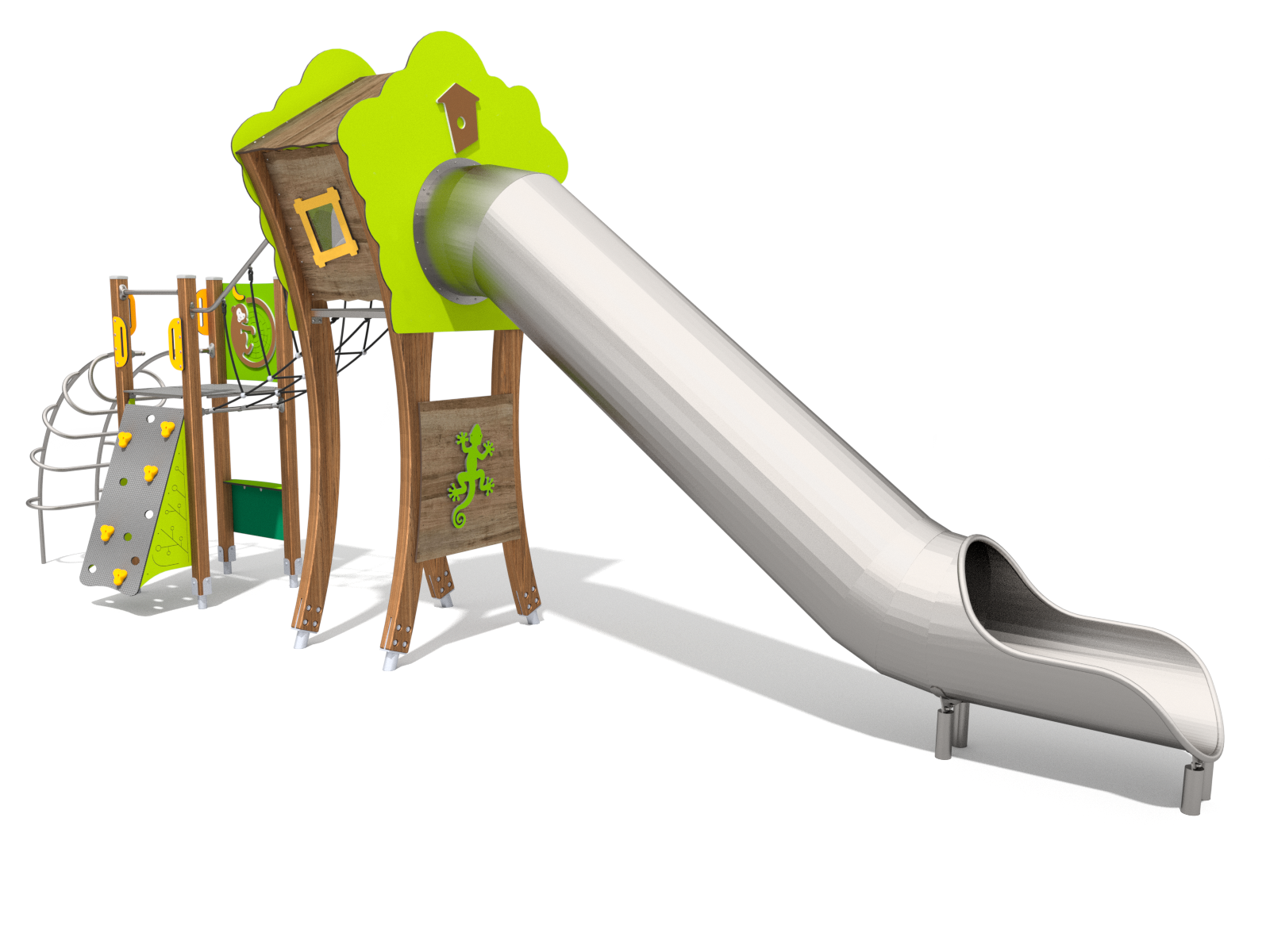

Description
Functionality: Balancing, Climbing, Sliding, Socialization. Assembly: Ground installation. Compliant with EN 1176-1 (as stated by Buglo). Safety zone: 1241 x 575 cm (52 m²). Materials: Soft conifer wood 90 x 90 mm, coreless, glued in layers with polyurethane glues, totally resistant to water. Patented system of connectors and clamps made of strong aluminium alloy. Plates of the walls made of colourful triple layered 15 mm hdpe polyethylene, in the highest quality, totally damp-proof. 8077 anti-slip anthracite 10mm hpl platform plate with a very high resistance to weather conditions and attrition. Climbing rocks made of chippings and colourful polyester resin. Bended posts made of soft conifer wood. Tube slide made of stainless steel aisi 304. Solid and esthetic rope connectors made of injection molded polyamide. Rope endings pressed in a sleeve made of durable aluminium alloy. Polipropylene ropes ppmultisplit type with a steel core and a dimeter of 16 mm. Connecting elements like screws, nuts, washers made of stainless steel. Scale 1:100 wooden posts anchored to the ground with powder galvanized and powder coated steel anchors.
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
