Published figures
- Free height of fall
- 185 cm
- Dimensions (L × W × H)
- 6.22 × 5.79 × 2.77 m
- Play capacity
- 25 users
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, polyethylene, polypropylene, hpl, rope, ropes, rubber, steel |
| Colours | GreyOrangeTealseen in product image |

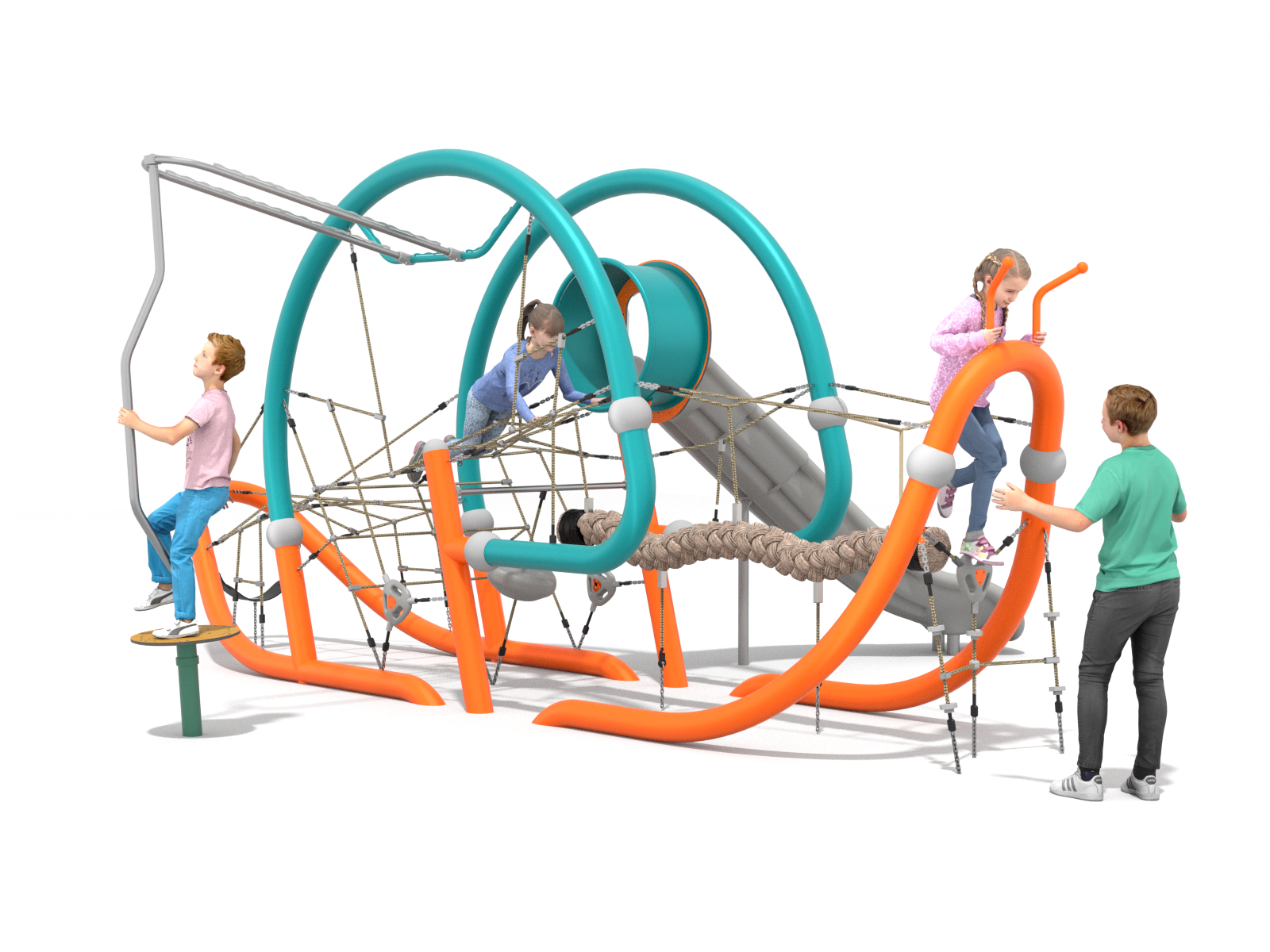

Description
Functionality: Balancing, Climbing, Emotion regulation, Grasping, Sensory Integration, Sliding, Socialization. Assembly: Ground installation. Safety zone: 922 x 926 cm. Materials: - Structure: bent pipes with a minimum diameter of 133 mm and varying bending radius. Minimum bending radius 350 mm. Pipes made of black steel S235JR, powder galvanised and powder coated, cleaned by shot blasting. - Unique pipe-joining system with the use of injection moulding technology. - Slide: polyethylene slide manufactured by rotational moulding from LDPE-type material. Modular slide with a variable direction of descent. - Carousel: base made of black steel S235JR, cleaned by shot blasting, powder galvanised and powder coated, with a platform made of 13 mm weather-resistant HPL board. Central pipe above the platform made of stainless steel AISI 304, cleaned by glass bead blasting. - Mushroom-shaped steps and rope handles with a non-slip surface. Manufactured by rotational moulding from LDPE-type material. - Nets: made of polypropylene rope, type pp-multisplit, 16 mm diameter with steel core. - Braid: made of braided rope Ø 140 mm, suspended on ropes Ø 16 mm made of polypropylene type pp-multisplit with steel core. - Flexi seat consisting of a reinforced belt covered with soft rubber, suspended on Ø 6 mm stainless steel chains. - All screws exposed to weather conditions are made of stainless steel. The snail-shaped product includes at least: - 1 x assembly of connected, bent pipes giving the product a snail shape - 1 x slide (platform height 150 cm) - 1 x carousel - 3 x rope handles - 1 x mushroom-shaped step - 1 x braid - 1 x flexi seat - 1 x horizontal net Product description 9311 Wall panels made of coloured, highest quality HPL 13 mm (black HPL 8mm), completely resistant to moisture and UV. Solid construction elements made of black steel cleaned in the sandblasting process. resistant to UV radiation Attested 6 mm stainless steel c.hains. 16 mm diameter polypropylene ropes ppmultislip, with a steel core. Rope Fi.140 mm hanged on ropes Fi. 16 mm, stainless fittings. Slides and roofs made using Rotomoulding technique using LDPE material Elements made of LDPE m
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
