Published figures
- Free height of fall
- 222 cm
- Age range
- 3–12 years
- Dimensions (L × W × H)
- — × — × 3.27 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, aluminium, polypropylene, polyethylene, hdpe, rope, rubber, epdm, steel |
| Colours | BeigeTealGreyseen in product image |
Description

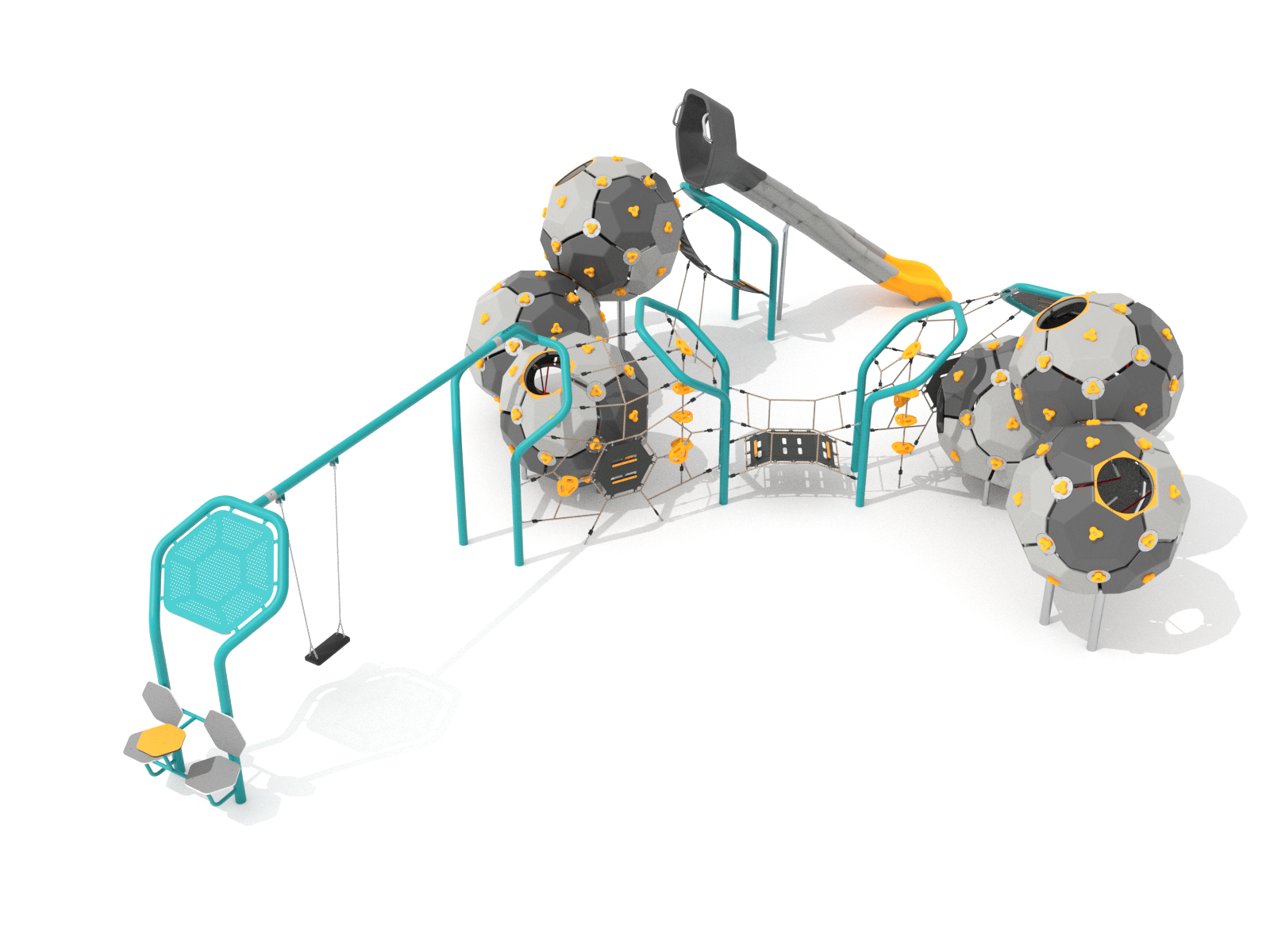

Functionality: Balancing, Climbing, Emotion regulation, Grasping, Sliding, Socialization, Swinging on Swings. Assembly: Ground installation. Materials: Hexagon-shaped frame, made of steel pipes with a minimum diameter of 88.9 mm, manufactured from black steel, shot-blasted and protected against corrosion by zinc-rich primer in powder and powder coating. Bubbles spheres manufactured using the rotational moulding method from LDPE. Each sphere features four openings with a diameter of 50 cm. The internal surface has a delicate anti-slip texture and is additionally fitted with a polypropylene pp-multisplit rope net (16 mm diameter). Climbing stones made from a blend of aggregates and coloured polyester resins facilitate climbing on the spheres. The Bubbles are supported on loadbearing posts made of stainless steel pipe, minimum 60.3 × 3.0 mm. Modular polyethylene slide, including the starting section, manufactured by rotational moulding from LDPE material. Slide handrails made of stainless steel, cleaned in the process of bead blasting. Climbing nets composed of multiple elements enhancing the climbing experience. The net is made of 16 mm diameter polypropylene pp-multisplit rope, with grips manufactured by rotational moulding from LDPE. The hexagonal climbing element is made of 10 mm thick reinforced rubber with a round anti-slip texture and milled handholds secured with a 15 mm thick HDPE polyethylene board. The net is connected to the frame using Ø6 mm stainless steel chains. Rope ends are secured in sleeves made of durable aluminium alloys. Vertical rope with steps made of LDPE using the rotational moulding method. The grips have an anti-slip surface and are connected with 16 mm diameter polypropylene pp-multisplit rope and attached to the frame using Ø6 mm stainless steel chains. Rope ends are secured in sleeves made of durable aluminium alloys. A swing module with a relaxation area. The swing frame is made of black steel pipes with a diameter of 88.9 mm and a height of 229 cm. The seat is a flat board made of aluminium and soft EPDM rubber, suspended on 6 mm diameter stainless steel chains.The table and chairs ar
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| 10 years | HPL, HDPE, stainless steel, hot-dip galvanized steel, wooden elements (pine, spruce) |
| 5 years | powder coated steel, aluminum, laminate, ropes, elements made in rotomoulding technology, elements made of polyamid, polypropylene elements |
| 2 years | rubber, moving elements ( bearings, joints), electronic elements, elements made of EPDM, elements made of plywood |
| Lifetime | the durability of components made of HDPE (high-density polyethylene), as well as the structural integrity of components made of black steel that has been powder galvanised and powder coated, stainless steel, and components made of hot-dip galvanised steel. 9522 |
Terms as stated by Buglo.
