Slides · Bubbles Atomiq

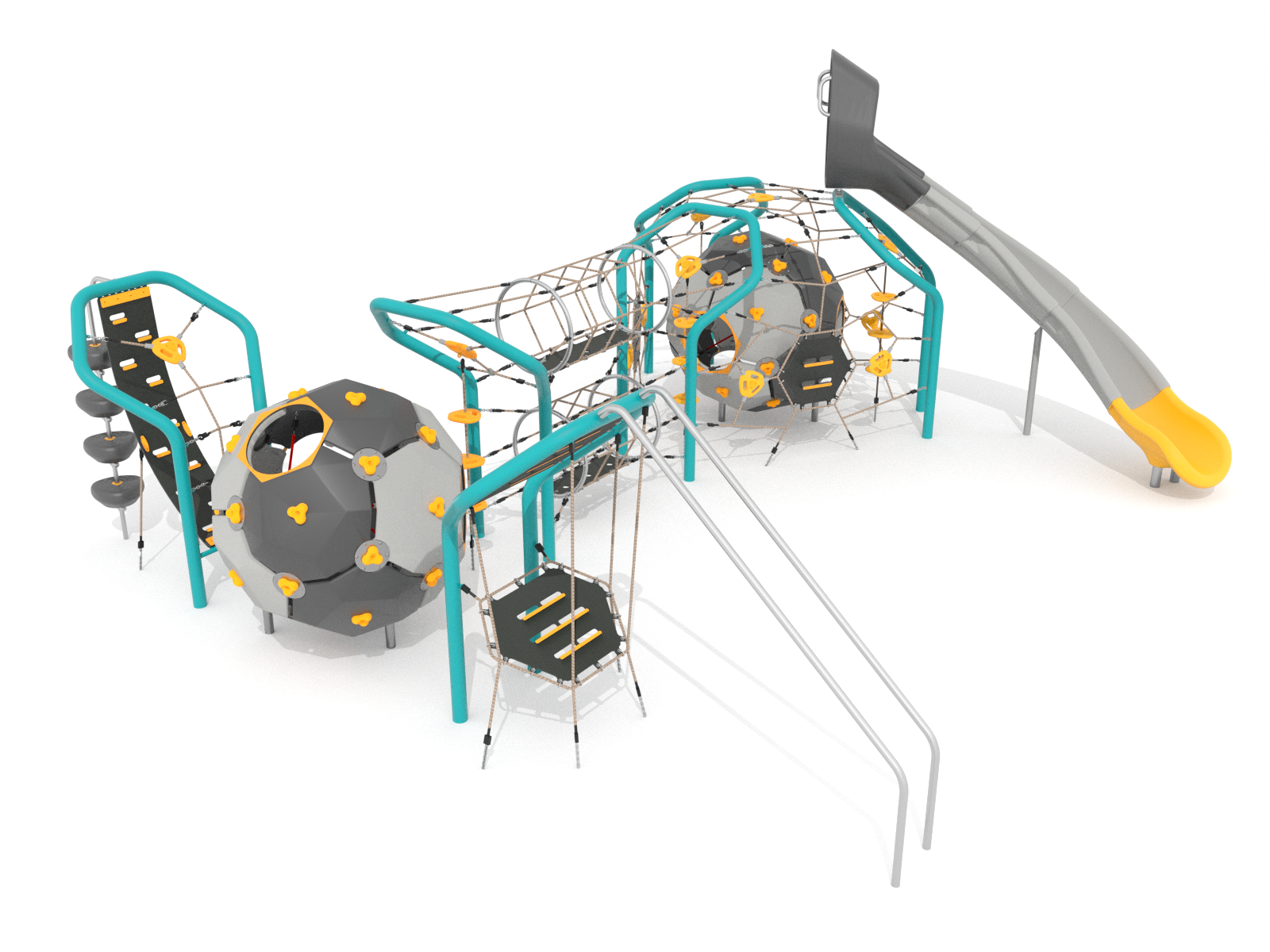

Climbing set consisting of two Bubbles, a slide and sliding poles.
9524 · Buglo
Published figures
- Free height of fall
- 222 cm
- Age range
- 3–12 years
- Dimensions (L × W × H)
- — × — × 3.27 m
As published by Buglo. Park Plan never estimates a figure.
Installation and tender detail
| Materials | stainless steel, aluminium, polypropylene, polyethylene, rope, ropes, rubber, steel |
| Colours | GreyTealWhiteseen in product image |
Description
Functionality: Balancing, Climbing, Emotion regulation, Grasping, Sliding, Socialization. Assembly: Ground installation. Safety zone: 1019 ×1006 cm. Materials: Hexagon-shaped frame, made of steel pipes with a minimum diameter of 88.9 mm, manufactured from black steel, shot-blasted and protected against corrosion by zinc-rich primer in powder and powder coating. Bubbles spheres manufactured using the rotational moulding method from LDPE. Each sphere features four openings with a diameter of 50 cm. The internal surface has a delicate anti-slip texture and is additionally fitted with a polypropylene pp-multisplit rope net (16 mm diameter). Climbing stones made from a blend of aggregates and coloured polyester resins facilitate climbing on the spheres. The Bubbles are supported on loadbearing posts made of stainless steel pipe, minimum 60.3 × 3.0 mm. Modular polyethylene slide, including the starting section, manufactured by rotational moulding from LDPE material. Slide handrails made of stainless steel, cleaned in the process of bead blasting. Sliding poles made of stainless steel pipe with a diameter of 42.4 mm, glass bead blasted. Bridge made of 16 mm diameter polypropylene pp-multisplit ropes. The bridge platform is made of 10 mm thick reinforced rubber with milled openings and a round anti-slip surface. The bridge is connected to the frame using Ø6 mm stainless steel chains. Rope ends are secured in sleeves made of durable aluminium alloys. A two-level Twin Bridge offers a variety of ways to cross and climb. The structure consists of two independent routes – a lower and an upper level.The rope tunnel is constructed from four rings made of stainless steel tubing with a diameter of 33.7 mm, with an internal opening of at least 64 cm. The platform is made of reinforced rubber with a circular anti-slip surface, 10 mm thick.The entire structure is wrapped with 16 mm diameter PP multisplit ropes with a steel core. Climbing nets composed of multiple elements enhancing the climbing experience. The net is made of 16 mm diameter polypropylene pp-multisplit rope, with grips manufactured by rotational moulding from LDPE. The hexagona
As written by Buglo.
Standards and certification
Published to EN 1176
Stated by Buglofor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
