Published figures
- Free height of fall
- 270 cm
- Space required
- 211.1 m²
- Impact area
- 211.1 m²
- Age range
- 6+ years
- Dimensions (L × W × H)
- 18.68 × 10.81 × 2.87 m
- Play capacity
- 64 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | UV-stabilized PES rope strands, steel cable reinforcement, galvanized steel, powder coated steel, 19mm EcoCore, aluminum, EPDM rubber |
| Components | Swaying seesaw, Prism right ropes, Shaky pods rope, Swaying bridge, Rope screw, Rope slalom, Tensegrity |
| Colours | MEDIUM GREENREDORANGE |
Description

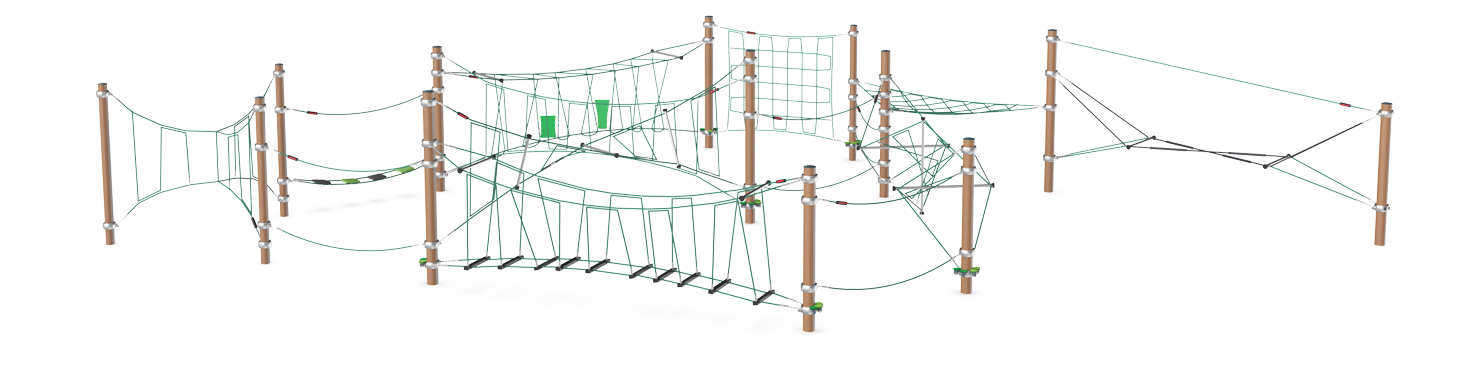

The Cottontop Trail provides thrilling, responsive challenges for children. The variety of play activities make them want to come back again and again for more fun. The nets act as a big trim trail and encourage games such as 'the ground is made of lava'. Lots of responsive, swaying and bouncing nets demand concentrated movement, adjusting for different rhythms of climbing. The nets train agility, balance and coordination skills, the ABC of motor skills, in an immensely fun way. Apart from being great fun, the horizontal net, Swaying Bridge and Shaky Pods allow children to take a break and socialise or cooperate together to move around the structure. This develops important social-emotional skills such as turn-taking, helping and sharing. The bouncy, swaying range of challenging play makes the Cottontop Trail a high retention play event that manages to support children's development through fun play.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Painted Toplayer | 10 years |
| Ropes & Nets | 10 years |
| Aluminium Clamps | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
