Published figures
- Free height of fall
- 233 cm
- Space required
- 54.3 m²
- Impact area
- 54.3 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 7.25 × 4.34 × 2.40 m
- Play capacity
- 8 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm pre-galvanised carbon steel, die-cast aluminium, ø32mm hot-dip galvanised S235JR steel, 38 x 2mm push up bars, Corocord 16mm ropes |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

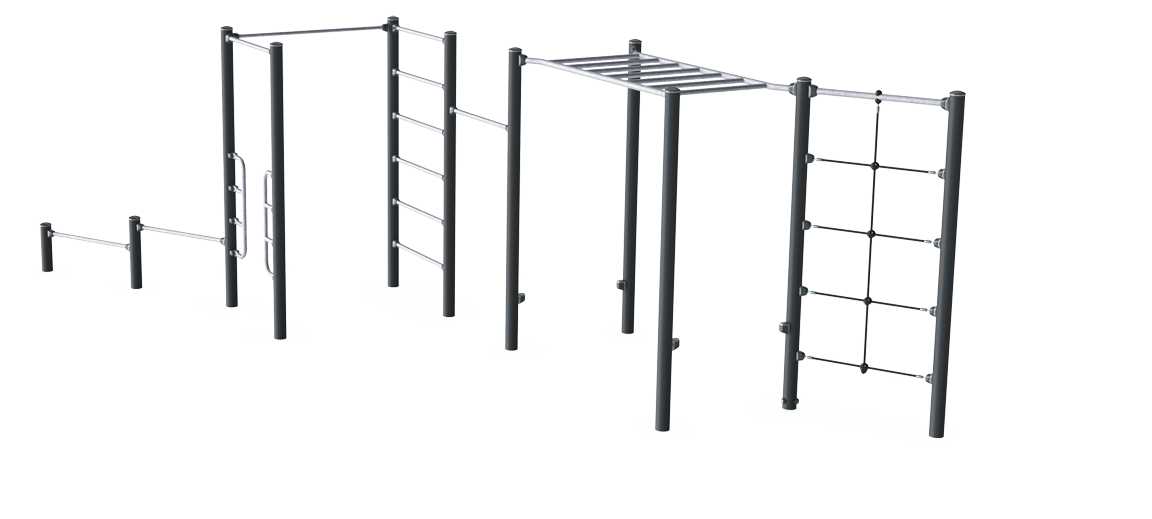

This overhead ladder is wide and high to ensure anyone can hang and move freely. To make sure that everyone can reach the overhead ladder there are 4 stepping pods at different heights. The complete street workout experience, features all essential elements while inviting users to creatively find their way from one side to the other. As such the Combi 3 is perfect for parkour, allowing for an infinite range of movement. The Pull Up Bar is made from solid steel and has a diameter of Ø32 mm, an ideal size for both men, women and kids to have a good grip. As the Bar hangs at a height of 233 cm everyone will be able to hang freely and use the bar for a variety of Pull Ups.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Connectors | 10 years |
| Ropes & Nets | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
