Published figures
- Free height of fall
- 233 cm
- Space required
- 40.5 m²
- Impact area
- 40.5 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 3.45 × 4.34 × 2.40 m
- Play capacity
- 8 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | die-cast aluminium, ø32mm hot-dip galvanised S235JR steel, 38 x 2mm push up bars, Ø101.6 x 2mm pre-galvanised carbon steel, Ekogrip panels |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

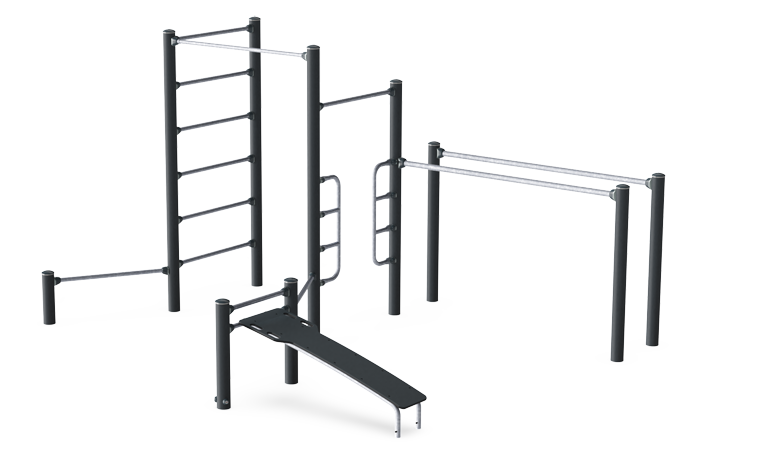

Compact and complete street workout and callisthenics combination for training and competition. It features an incline bench, parallel bars, push up bar, decline press, Swedish ladder and pull up station. Seven workout stations in one, and all within only 41 m². The 138cm wide pull up bars are designed to give plenty of space for dynamic exercises and promote sideways exercises such as the typewriter pull up. The wide bars also allow for users to do pull ups next to each other and thereby compete or motivate each other.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Circular HDPE | Lifetime |
| Connectors | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
