Published figures
- Free height of fall
- 233 cm
- Space required
- 29.5 m²
- Impact area
- 29.5 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 2.28 × 1.19 × 2.40 m
- Play capacity
- 2 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium, stainless steel, zinc washers |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

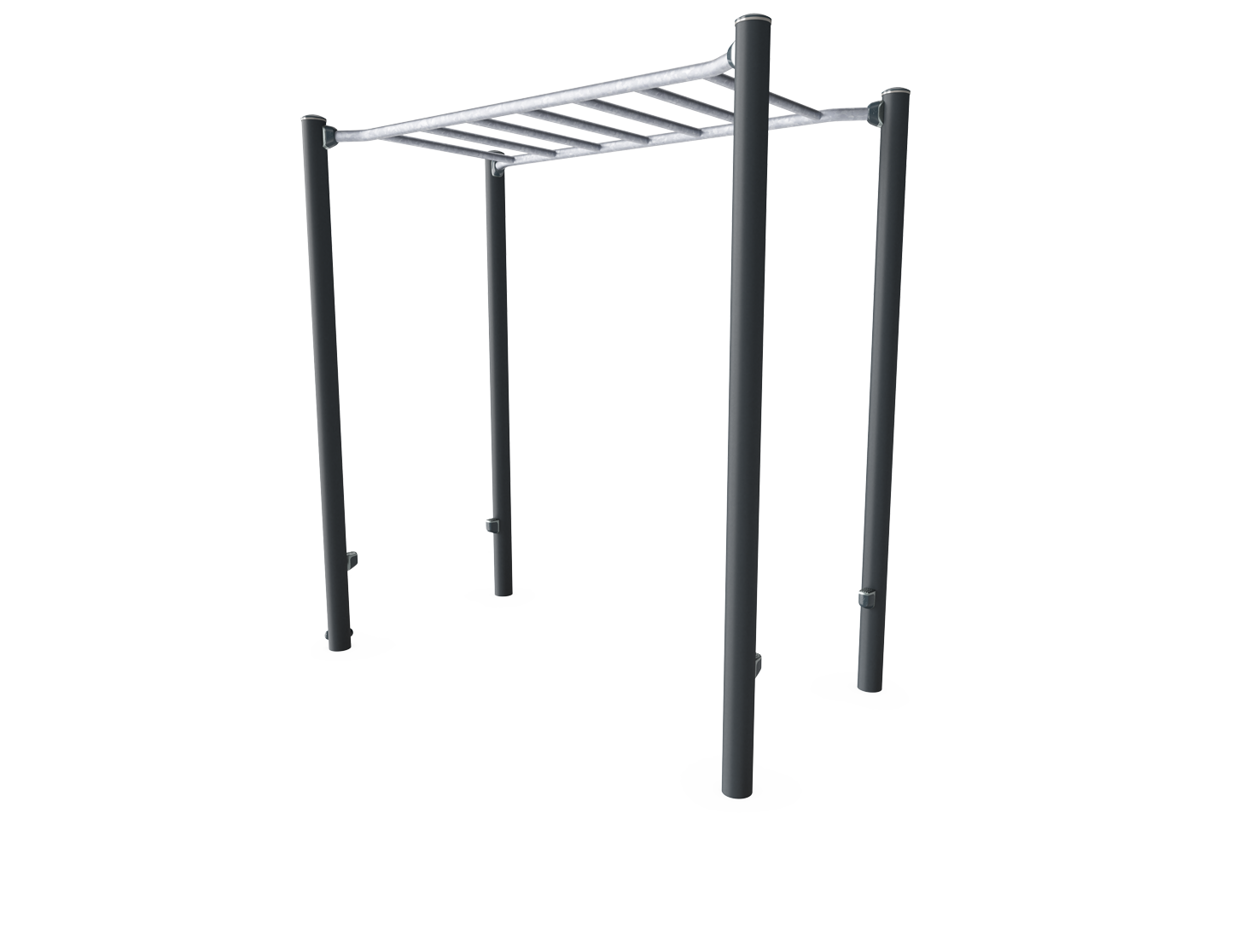

The overhead ladder, also known as the monkey bar, may be the most famous of all obstacle course elements. The goal is to get to the other side without using your feet. This overhead ladder is wide and high to ensure anyone can hang and move freely. To make sure that everyone can reach the overhead ladder there are 4 stepping pods.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Post | 10 years |
| Galvanised Steel | Lifetime |
| Spare Parts Guarantee | 10 years |
| Connectors | 10 years |
Terms as stated by Kompan Australia.
