Published figures
- Free height of fall
- 233 cm
- Space required
- 25 m²
- Impact area
- 25.0 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 2.73 × 0.11 × 2.40 m
- Play capacity
- 2 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium, stainless steel, zinc washers, ø32mm x 138m, hot-dip galvanised, S235JR steel bars |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

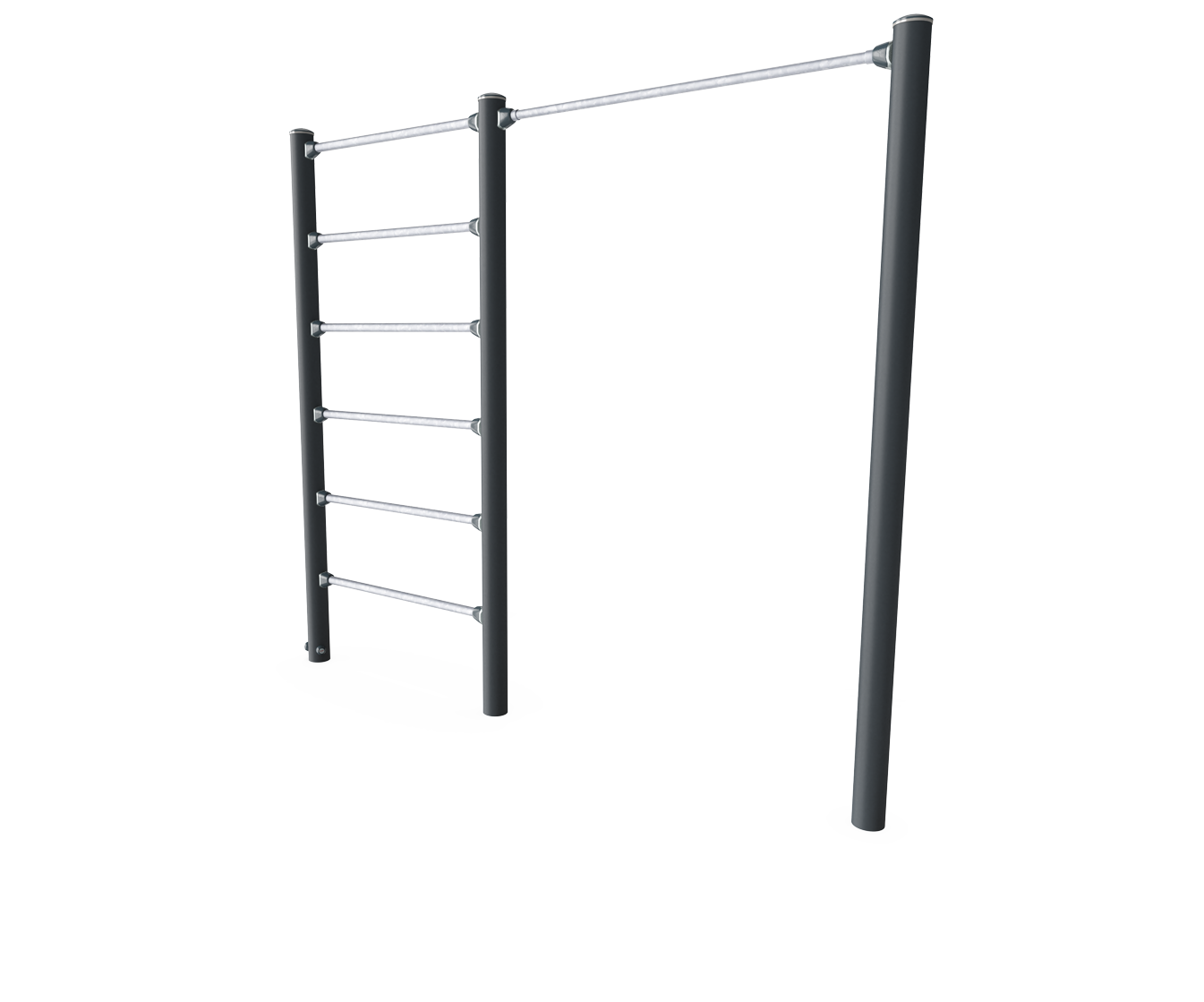

The vertical ladder can be used as a wall, to influence difficulty levels of various exercises such as hand stand push ups, Bulgarian split squats and push ups. Additionally the vertical ladder is perfect for stretching and offers a step up for reaching the pull up bar. The Pull Up Bar is made from solid steel and has a diameter of Ø32 mm. An ideal size to have a good grip.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Galvanised/painted metal | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
