Published figures
- Free height of fall
- 233 cm
- Space required
- 33.1 m²
- Impact area
- 33.1 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 4.45 × 1.19 × 2.70 m
- Play capacity
- 3 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium, stainless steel, zinc washers, extruded aluminium with non-skid surface |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

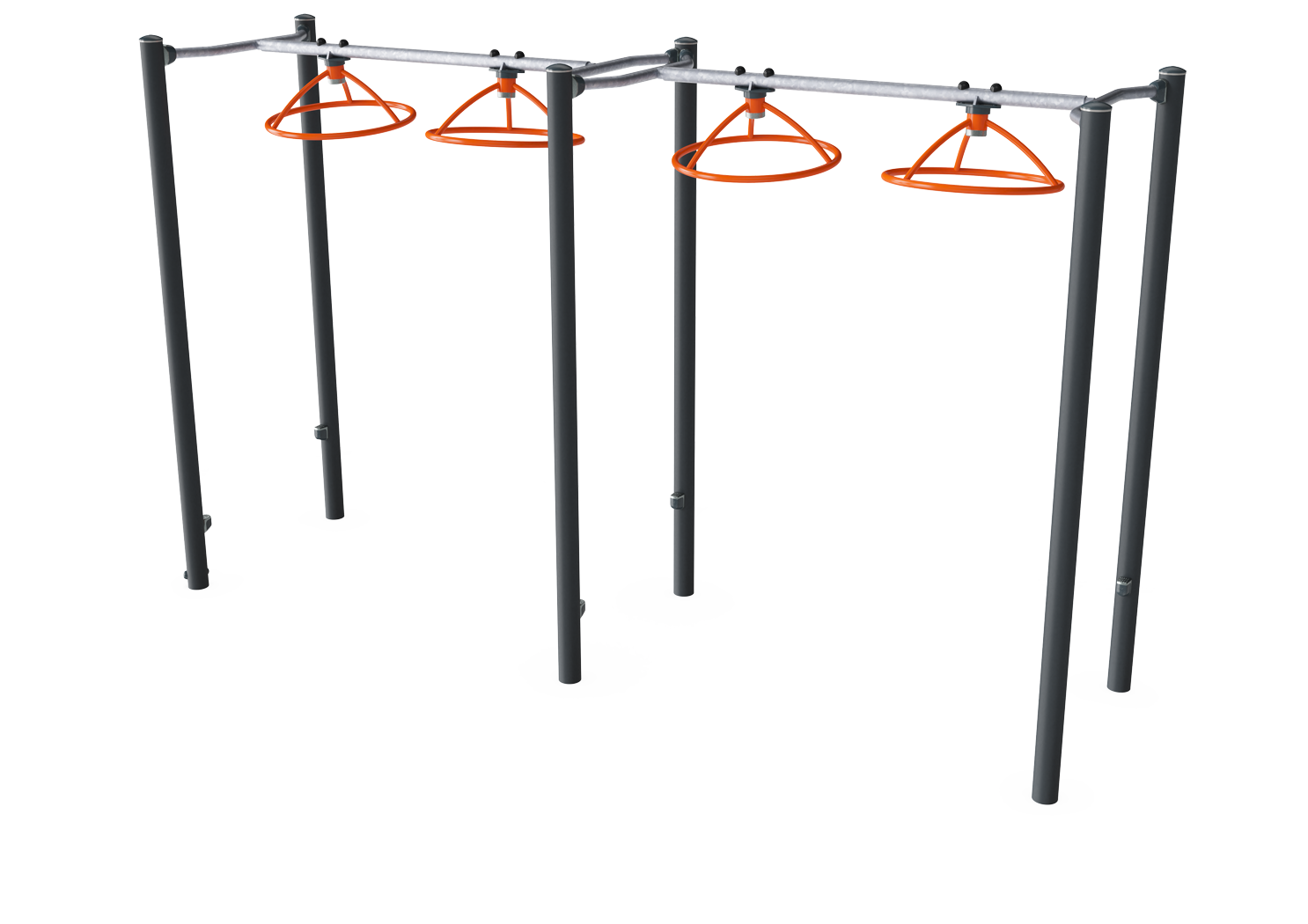

The Turbo Challenge is the most dynamic and thrilling element of all obstacle course exercises. To do the exercise in the best way, a combination of skills, timing, rhythm and cross body coordination is needed. This Turbo Challenge is wide and high to ensure anyone can hang and move freely. To make sure that everyone can reach the dynamic wheels there are 4 stepping pods at different heights. For an optimized and direct swing the 4 four dynamic wheels have been mounted under a 5-degree angle.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Wheels | 10 years |
| Bearing Construction | 5 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
