Published figures
- Free height of fall
- 118 cm
- Space required
- 35.9 m²
- Impact area
- 35.9 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 1.52 × 5.66 × 1.18 m
- Play capacity
- 4 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pregalvanised carbon steel, powder coated, die-cast aluminium, stainless steel, hot-dip galvanised steel ø38mm |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

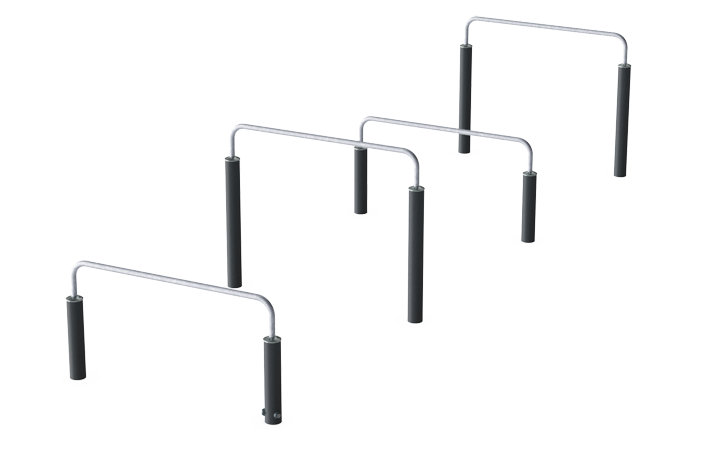

Trained athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. A great way to train, strength, agility, coordination and flexibility. The Over Under obstacle is a great example that everyone can be challenged at their own level. The bars are positioned closely to another therefore a combination of lower body and upper body strength is required to overcome this obstacle. Rounded corners make it safe and simple for anyone to try exercises in which they swing over their legs over the bar.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Post | 10 years |
| Galvanised Steel | Lifetime |
| Connectors | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
