Published figures
- Free height of fall
- 233 cm
- Space required
- 26.9 m²
- Impact area
- 26.9 m²
- Age range
- 8+ years
- Dimensions (L × W × H)
- 1.65 × 1.64 × 2.40 m
- Play capacity
- 4 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pregalvanised carbon steel, powder coated, extruded aluminium, die-cast aluminium, stainless steel, ø32mm x 138m, hot-dip galvanised, S235JR steel bars |
| Colours | ANTHRACITEYELLOWORANGEREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

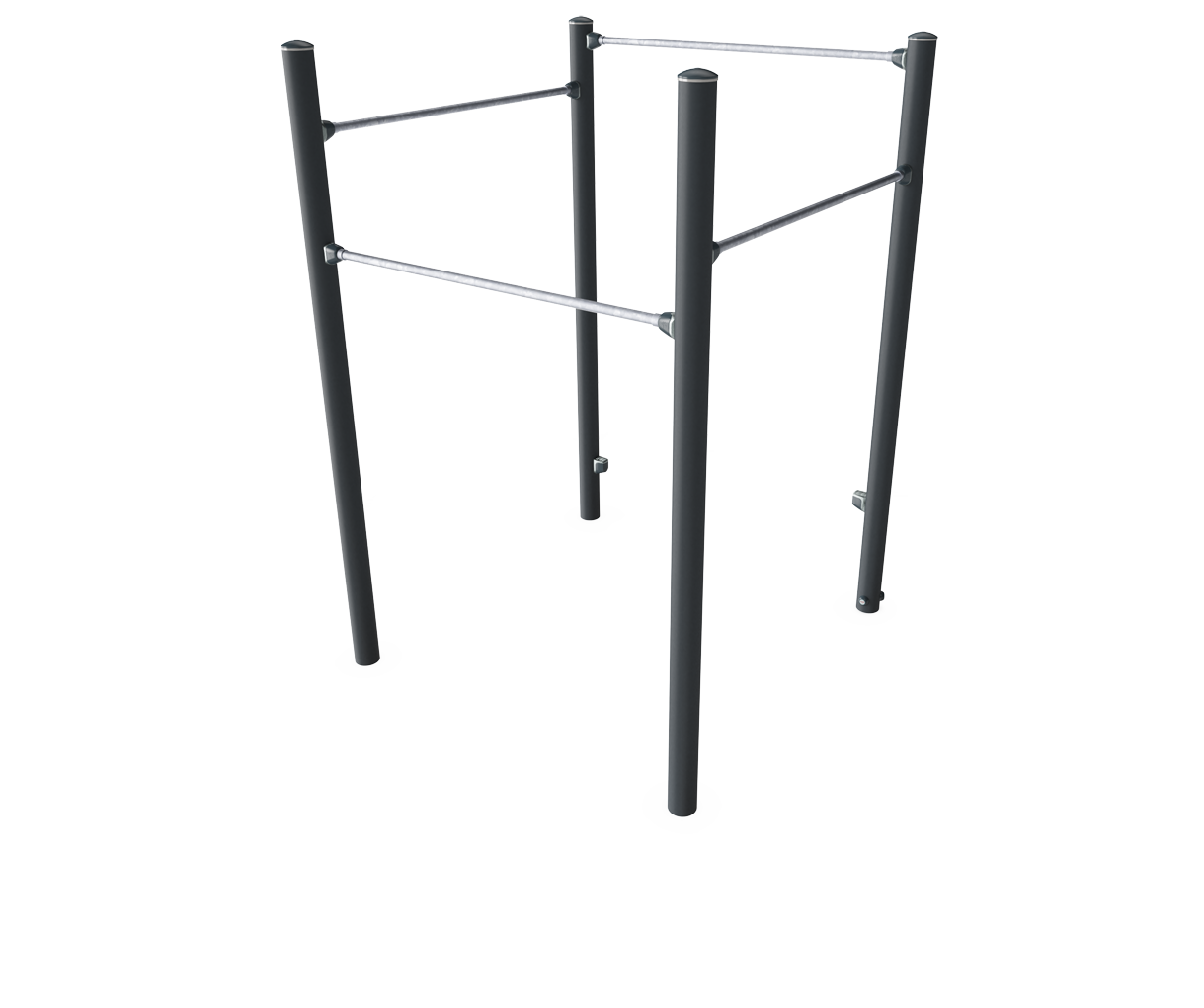

The Square Pull Up Station can be used in many ways and by multiple users at the same time. Exercises range from normal pull ups to the most dynamic and advanced exercises such as the Flying Monkey, where you fly from one bar to another. The Pull Up Bars are made from solid steel and have a diameter of 32 mm. An ideal size for both men and women to have a good grip. As the highest bar is connected at a height of 233 cm everyone will be able to hang freely, to make sure that everyone can reach the pull up bars there are 2 stepping pods at different heights.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Post | 10 years |
| Connectors | 10 years |
| Galvanised Steel | Lifetime |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
