Published figures
- Free height of fall
- 133 cm
- Space required
- 19.7 m²
- Impact area
- 19.7 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 1.71 × 1.71 × 2.61 m
- Play capacity
- 4 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Robinia, Galvanised Steel |
| Colours | ROBINIA UNT. WOOD |
Description

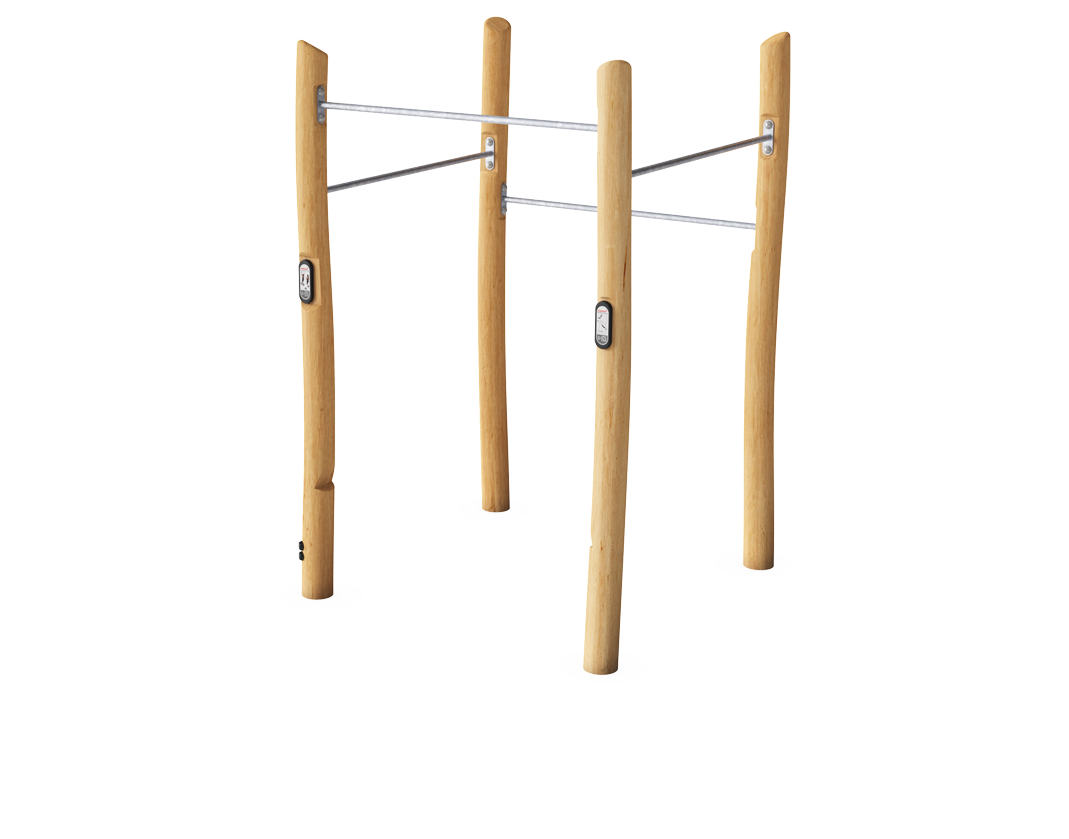

The Square pull-up Station can be used in many ways and by multiple users at the same time. Exercises range from normal pull-ups to the most dynamic and advanced exercises, such as the Flying Monkey, where you fly from one bar to another. The pull-up Up Bars are made from solid steel and have a diameter of 32 mm. Ideal size for both men and women to have a good grip. As the highest bar is connected at a height of 233 cm, everyone will be able to hang freely. To make sure that everyone can reach the pull-up bars, there are 2 stepping pods at different heights, and the pull-up station features a low bar, allowing wheelchair users to reach directly from their wheelchairs.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Accessible play
As published by Kompan Australia.
- low bar for wheelchair users
The pull-up station features a low bar, allowing wheelchair users to reach directly from their wheelchairs.
Warranty
up to lifetime| Robinia Wood | 15 years |
| Galvanised Steel | Lifetime |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
