Published figures
- Free height of fall
- 133 cm
- Space required
- 62.1 m²
- Impact area
- 62.1 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 6.95 × 4.44 × 2.40 m
- Play capacity
- 14 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm pre-galvanised carbon steel, powder coated, die-cast aluminium, stainless steel, ø32mm x 138m hot-dip galvanised S235JR steel bars, extruded aluminium, Ekogrip™ panels, 15mm polyethylene, 3mm thermoplastic rubber, 17.8mm thick high pressure laminate (HPL) panels, PA6 (Polyamide) |
| Colours | ORANGEANTHRACITEDARK BLUEYELLOWREDBROWNLIGHT BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

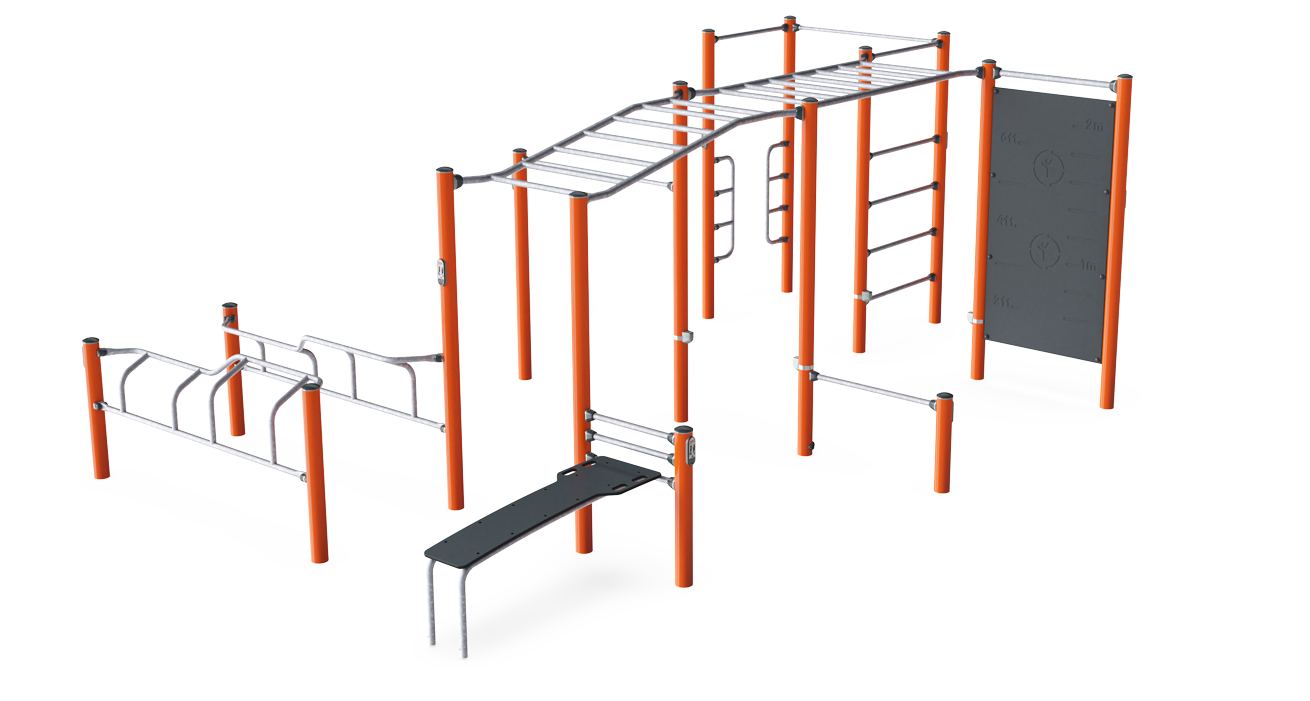

With 10 different workout stations in one, this combination package offers a superior street workout and callisthenics experience. Featuring all the essential elements for users to release their creativity, the dimensions of the pull-up bars have been optimised to 32mm for the best possible hand grip. The strength of the bar is secured through a conical design and a full steel bar. The 138cm wide pull-up bars are designed to give plenty of space to dynamic exercises and promote sideways exercises such as the typewriter pull-up. The wide bars also allow users to do pull-ups next to each other and thereby compete or motivate each other. The Universal Parallel Bars allow for users of all capabilities to work on dips and stretch exercises with a wider entrance on one side for wheelchair users.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Accessible play
As published by Kompan Australia.
- wider entrance on one side for wheelchair users
The Universal Parallel Bars allow for users of all capabilities to work on dips and stretch exercises with a wider entrance on one side for wheelchair users.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Connectors | 10 years |
| Circular HDPE | Lifetime |
| HPL Panel | 15 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
