Published figures
- Free height of fall
- 93 cm
- Space required
- 19.5 m²
- Impact area
- 19.5 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 2.28 × 1.20 × 2.00 m
- Play capacity
- 2 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm pre-galvanised carbon steel, powder coated, die-cast aluminium, stainless steel, extruded aluminium, PA6 (Polyamide) |
| Colours | ORANGEANTHRACITEDARK BLUEYELLOWREDBROWNLIGHT BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

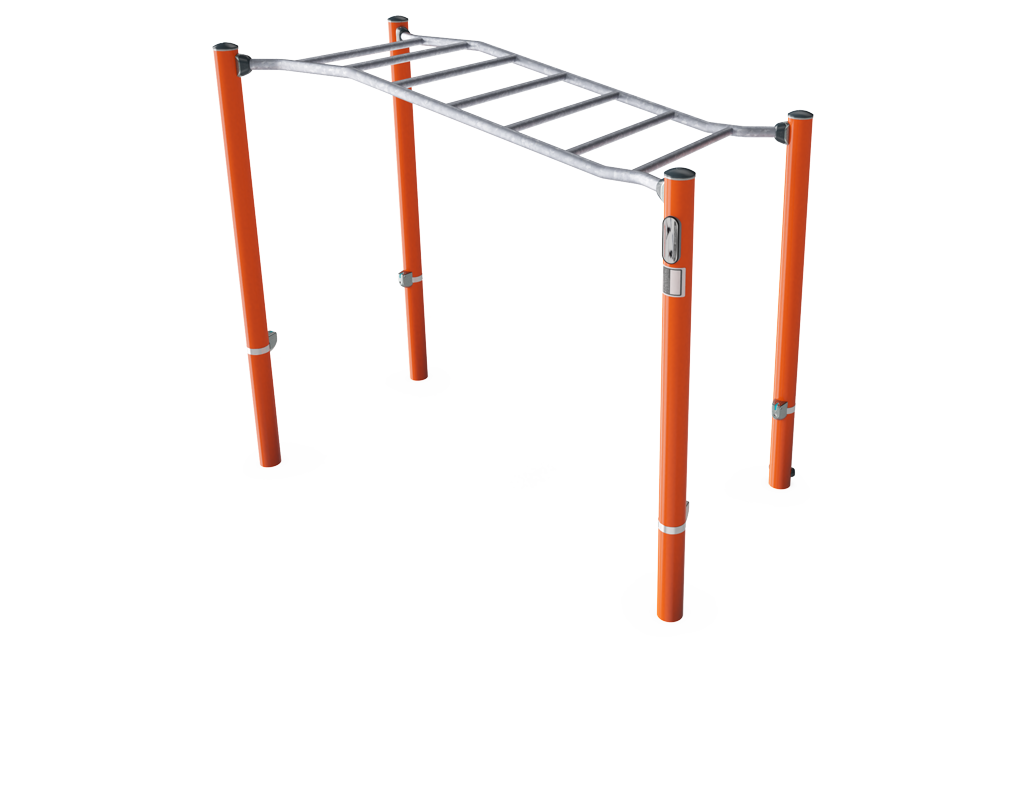

The overhead ladder, also known as the monkey bar, might be the most famous of all obstacle course elements. The goal is to get to the other side without using your feet. This overhead ladder is wide and high to ensure anyone can hang and move freely. To make sure that everyone can reach the overhead ladder there are 4 stepping pods at different heights. The overhead ladder has a clear instruction sign showing the basic exercise and a QR code. By clicking on the QR code users can connect to the KOMPAN fitness App, where they will find multiple exercises and workouts at every level.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Accessible play
As published by Kompan Australia.
- 4 stepping pods at different heights
To make sure that everyone can reach the overhead ladder there are 4 stepping pods at different heights.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Connectors | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
