Published figures
- Free height of fall
- 99 cm
- Space required
- 17.7 m²
- Impact area
- 17.7 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 3.37 × 0.11 × 1.07 m
- Play capacity
- 3 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium connectors, stainless steel screws, 38 x 2mm push up bars at three heights of respectively 38cm, 58cm and 99cm, PA6 (Polyamide) information sign |
| Colours | ORANGEANTHRACITEDARK BLUEYELLOWREDBROWNLIGHT BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

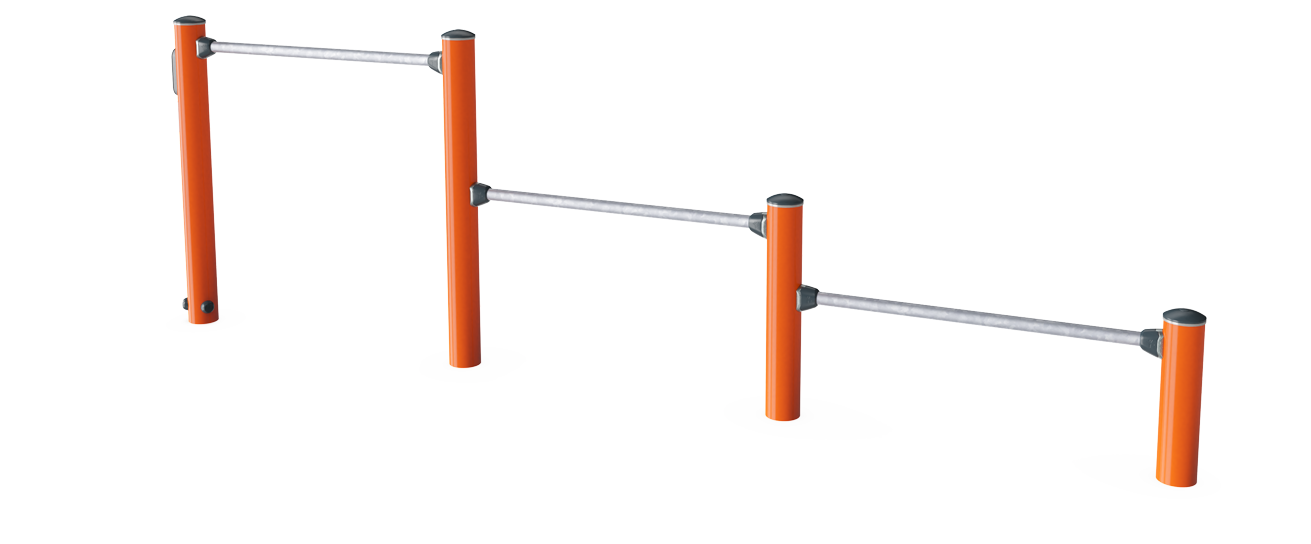

The push up bars are specifically designed for upper body training. The chest and arms can be trained through exercises such as rows or dips, or if you do not mind getting dirty you can 'belly crawl' underneath the bars. Alternatively, a single hurdle can be used for exercises on the spot such as push ups and high jumps.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Connectors | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
