Published figures
- Free height of fall
- 125 cm
- Space required
- 27 m²
- Impact area
- 27.0 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 4.43 × 1.19 × 2.70 m
- Play capacity
- 3 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium connectors, stainless steel screws, extruded aluminium steps with non-skid surface mounted at heights of 34,7cm and 54,7cm, PA6 (Polyamide) information sign |
| Colours | ANTHRACITEORANGEYELLOWREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

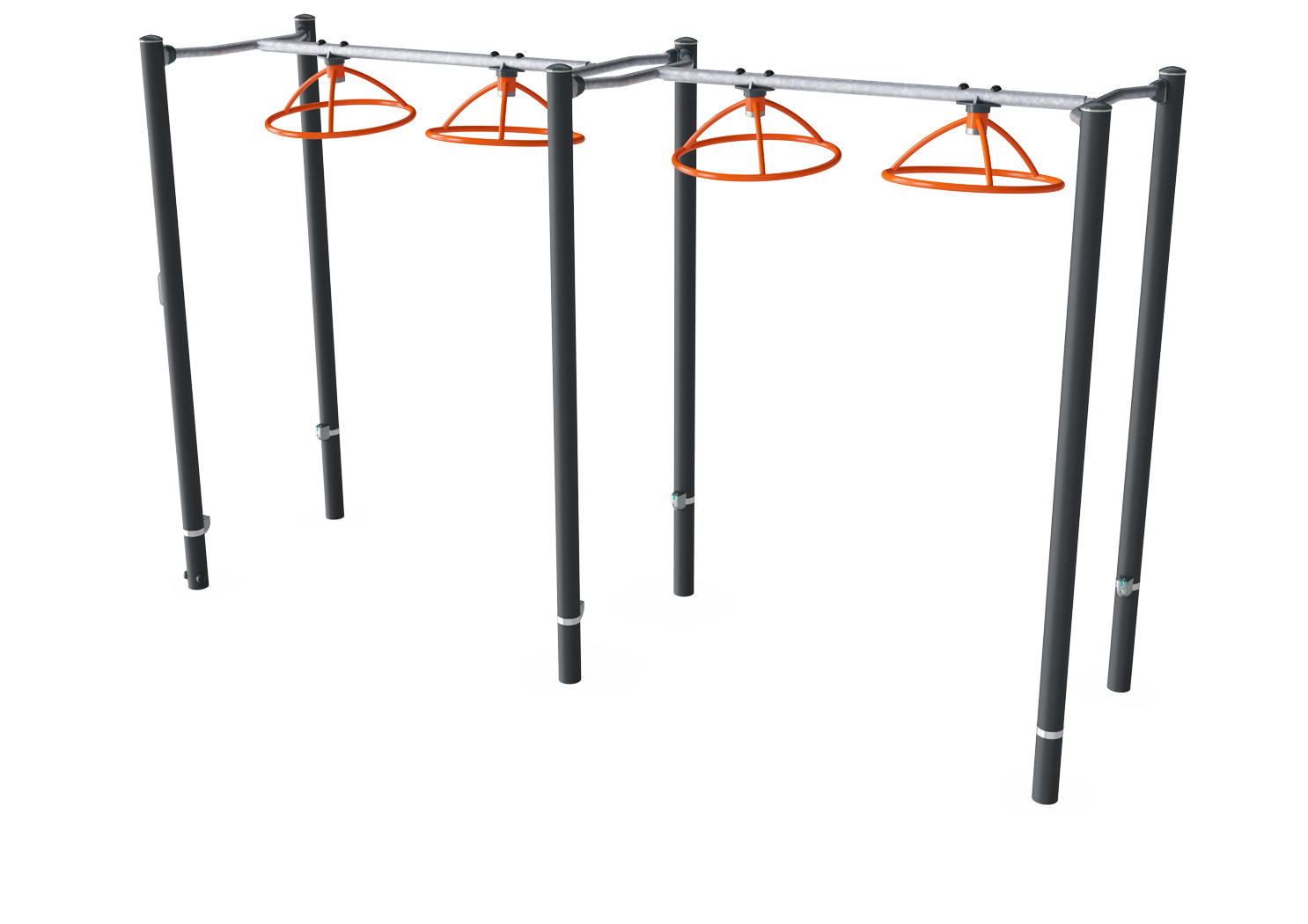

The Turbo Challenge is the most dynamic and thrilling element of all obstacle course exercises. To do the exercise in the best way, a combination of skills, timing, rhythm and cross body coordination is needed. This Turbo Challenge is wide and high to ensure anyone can hang and move freely and to make sure that everyone can reach the dynamic wheels there are 4 stepping knobs at different heights. For an optimized and direct swing the 4 four dynamic wheels have been mounted under a 5-degree angle.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Galvanised Steel | Lifetime |
| Post | 10 years |
| Wheels | 10 years |
| Bearing Construction | 5 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
