Published figures
- Free height of fall
- 118 cm
- Space required
- 35 m²
- Impact area
- 35.0 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 1.51 × 5.66 × 1.18 m
- Play capacity
- 4 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium connectors, stainless steel screws, hot-dip galvanised steel ø38mm bars, PA6 (Polyamide) information sign |
| Colours | ANTHRACITEORANGEYELLOWREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

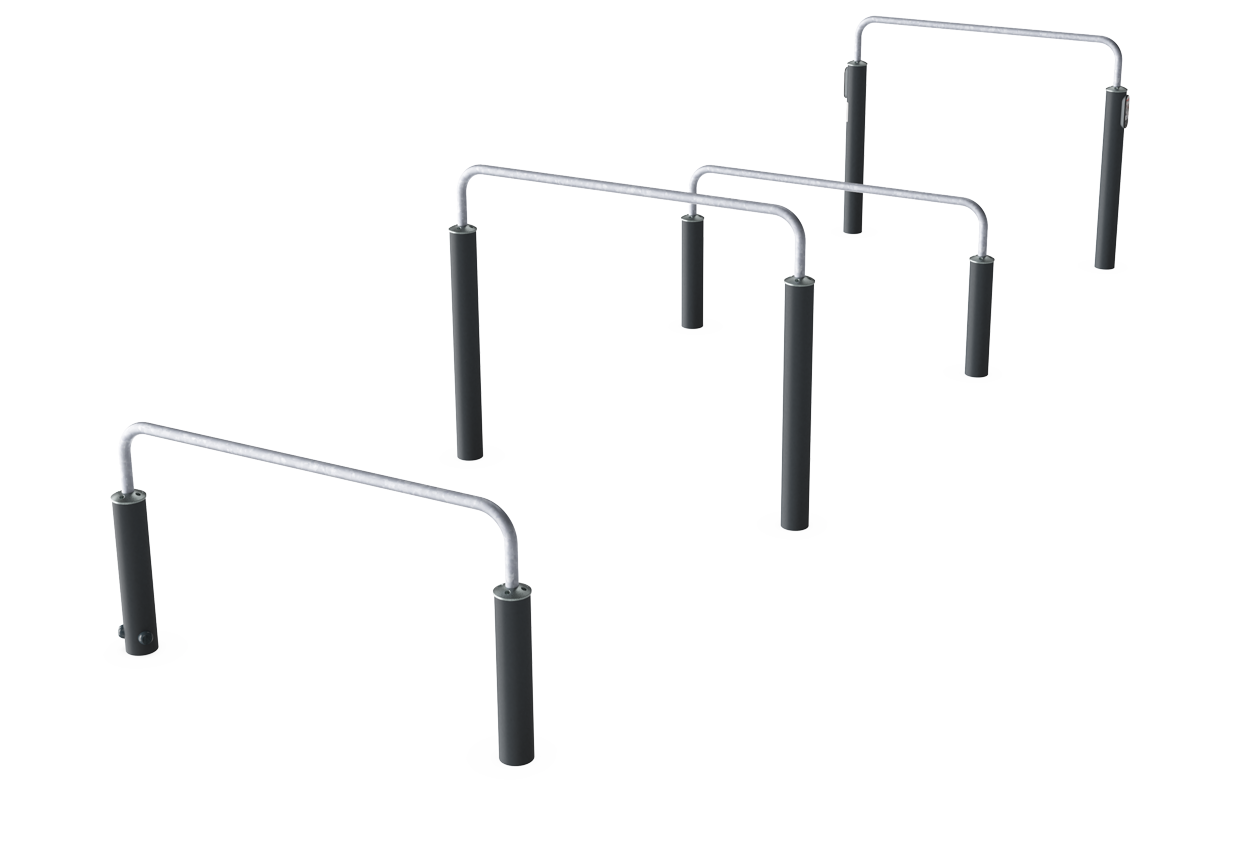

Trained athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. A great way to train strength, agility, coordination and flexibility. The Over Under obstacle is a great example that everyone can be challenged at their own level. The bars are positioned closely to another therefore a combination of lower body and upper body strength is required to overcome this obstacle. Rounded corners make it safe and simple for anyone to try exercises in which they swing their legs over the bar.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Post | 10 years |
| Galvanised Steel | Lifetime |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
