Published figures
- Free height of fall
- 233 cm
- Space required
- 19.6 m²
- Impact area
- 19.6 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 2.28 × 1.12 × 2.40 m
- Play capacity
- 3 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium connectors, stainless steel screws, 17.8mm thick high pressure laminate (HPL) panels, UV-stabilised PES ropes with inner steel cable reinforcement, PA6 (Polyamide) information sign |
| Colours | ANTHRACITEORANGEYELLOWREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREYAny RAL colour on request |
Description

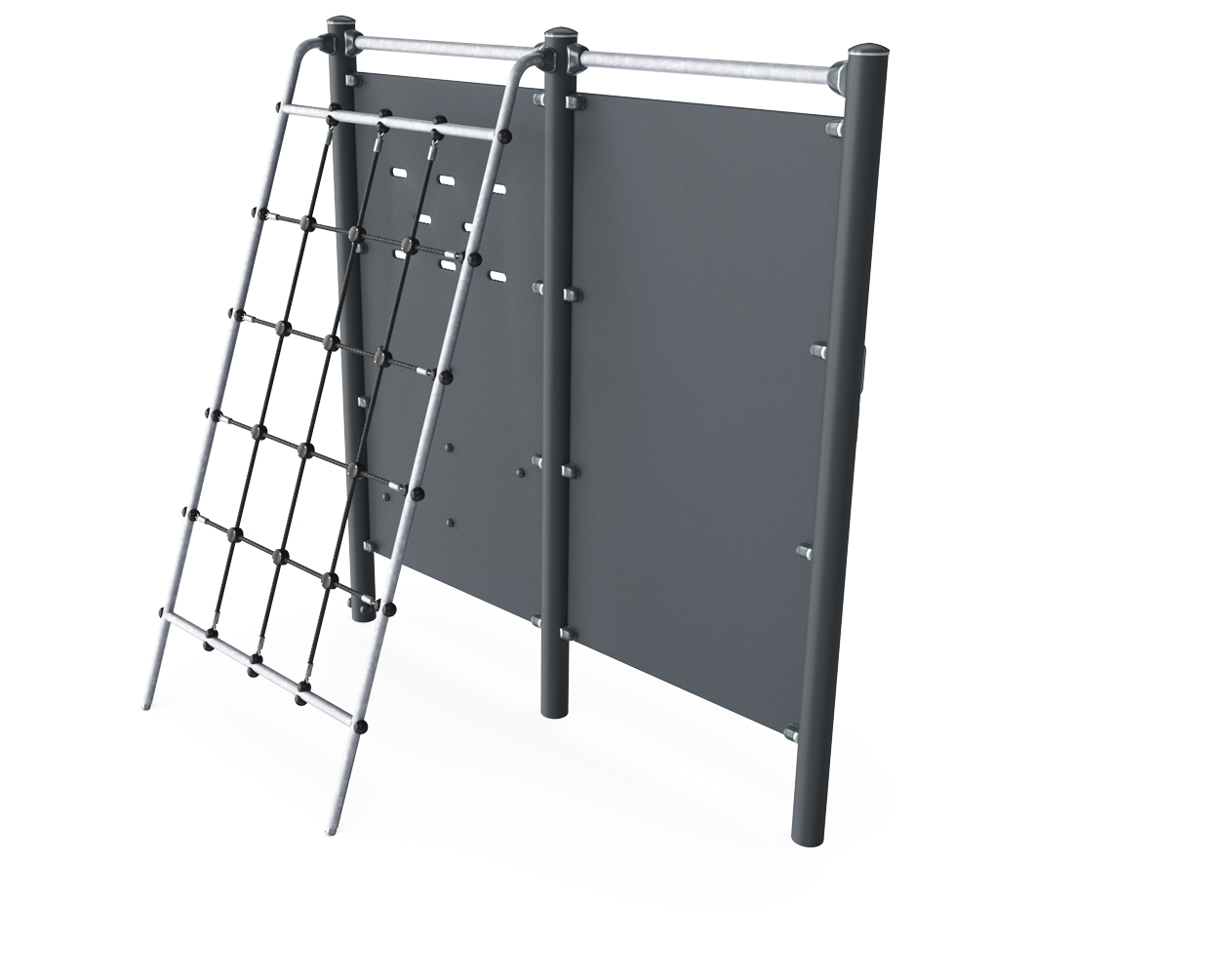

The wall consists of two segments. The left side is a flat wall of almost 2.40m high which can be conquered by only the fittest. The right side has three steps to assist the feet and eight handles to help you get over the wall. The scalable wall makes it fun for everyone to play or train together. Everyone will develop muscle strength and bone density when jumping over or even improve their self-esteem if they dare to climb up. The Wall is standard available in Orange, RAL2010 and Grey, RAL7012. All other RAL colours are available on request.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| HPL Panel | 15 years |
| Post | 10 years |
| Galvanised Steel | Lifetime |
| Ropes & Nets | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
