Published figures
- Free height of fall
- 133 cm
- Space required
- 27.8 m²
- Impact area
- 27.8 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 3.17 × 2.76 × 2.40 m
- Play capacity
- 6 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated, die-cast aluminium connectors, stainless steel screws, ø32mm x 138m, hot-dip galvanised, S235JR steel bars, extruded aluminium steps with non-skid surface mounted at heights of 34,7cm and 54,7cm, PA6 (Polyamide) information sign |
| Colours | ORANGEANTHRACITEYELLOWREDBROWNLIGHT BLUEDARK BLUELIMEBEIGEMEDIUM GREENDARK GREENDARK GREYBLACKMEDIUM GREY |
Description

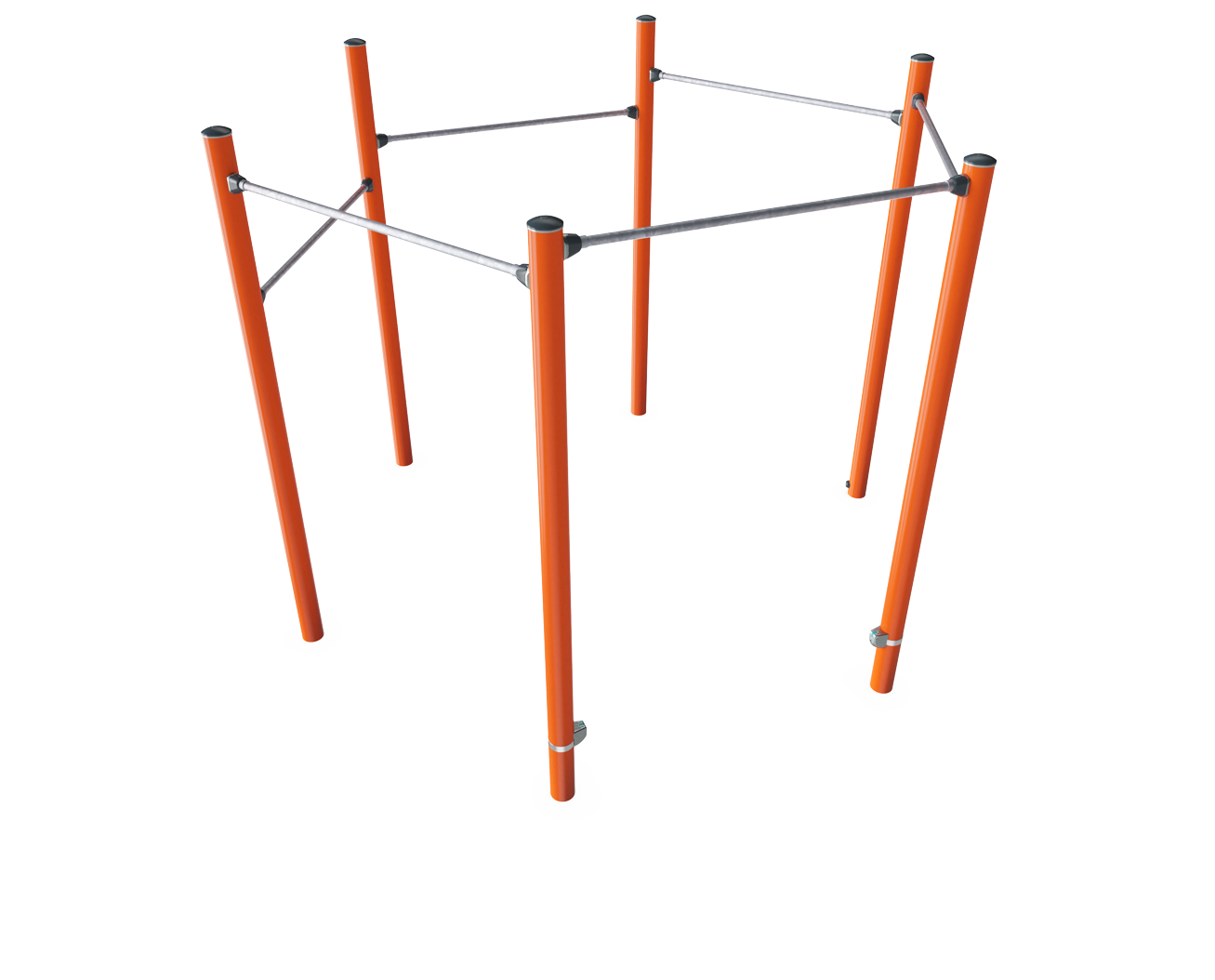

The hexagon pull up can be used in many ways and by multiple users at the same time. Exercises range from normal pull ups to the most dynamic and advanced exercises such as the Muscle Up. The pull up bars are made from solid steel and have a diameter of 32 mm. An ideal size for both men and women to have a good grip. As the highest bar is connected at a height of 233 cm everyone will be able to hang freely, to make sure that everyone can reach the pull up bars there are 2 stepping pods at different heights.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to EN 16630 (fitness)Certified to EN 16630 (fitness) by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Post | 10 years |
| Galvanised Steel | Lifetime |
| Connectors | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
