Published figures
- Free height of fall
- 233 cm
- Space required
- 72.8 m²
- Impact area
- 72.8 m²
- Age range
- 13+ years
- Dimensions (L × W × H)
- 5.89 × 5.48 × 3.25 m
- Play capacity
- 19 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | Ø101.6 x 2mm pre-galvanised carbon steel, powder coated steel, Ekogrip® panels, molded polycarbonate and TPE, hot-dip galvanised s235 steel Ø38 x 4mm, 19mm CircularHDPE, hot dip galvanised S235 steel tubes |
| Colours | DARK GREYORANGEDARK BLUEYELLOWREDLIGHT BLUELIMEMEDIUM GREENDARK GREENBROWNBEIGEMEDIUM GREYANTHRACITEBLACK |
Description

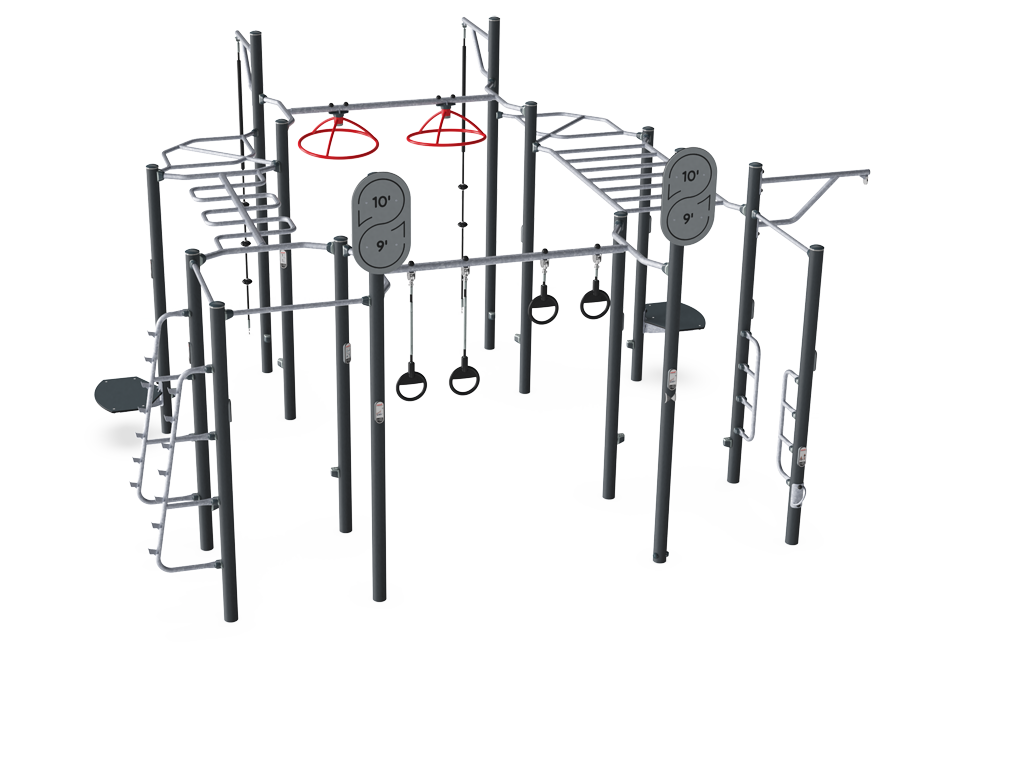

The Super Combi 3 Gated has the same options as the standard Super Combi 3 but also has a connector for a battle rope, a connector for a boxing bag, and a station for barbell exercises. This item is intended for supervised or gated areas such as sports or fitness clubs, as these loose items do not satisfy safety standards for public places. Supervised products are only for areas that are gated or fenced off, like fitness clubs with supervision or gated communities.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685
Stated by Kompan Australiafor this range rather than on this product’s own sheet. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Circular HDPE | Lifetime |
| Galvanised Steel | Lifetime |
| Steel | 10 years |
| Movable Parts | 2 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
