Play structures · Diabolo

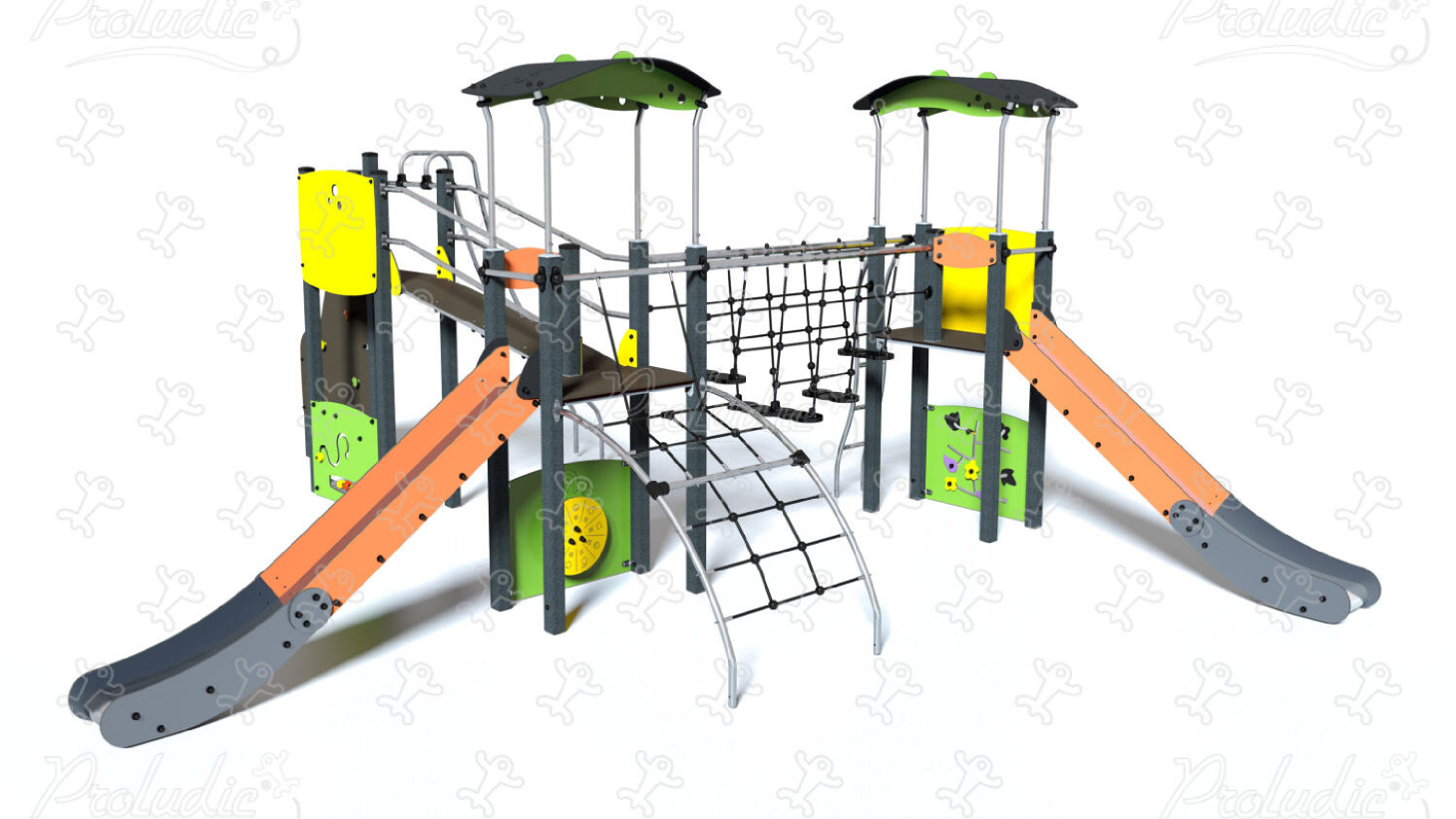

Multiplay equipment for children with slides, rope bridge, and climbing activities
J38109 · Proludic Australia
Published figures
- Free height of fall
- 260 cm
- Space required
- 16.5 m²
- Age range
- 3+ years
- Dimensions (L × W × H)
- 6.71 × 8.26 × 3.20 m
- Play capacity
- 32 users
As published by Proludic Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | rope |
| Components | Rectangular platform, Rectangular platform, Roof, Curved ladder, Floating steps, Inclined bridge, Climbing wall, Incline net H: 1.37m, Slide H: 1.37m, Speed Slide, Flower panel, Lottery Panel, Triple play panel, Slide H: 1.37m |
| Colours | GreyYellowGreenseen in product image |
Description
As published by the manufacturer: Impact area at 0,6m — 1 0,6m 2,5m²; Impact area at 1m — 2 1m 14,5m²; Impact area at 1,37m — 3 1,37m 20,5m²; Impact area at 2,1m — 4 2,1m 6,5m²; Impact area at 2,5m — 5 2,5m 16m²; Impact area at 2,6m — 6 2,6m 16,5m².
As written by Proludic Australia.
Standards and certification
Published to AS 4685Published to EN 1176
Reproduced from what Proludic Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Accessible play
As published by Proludic Australia.
- Physical inclusion
- Sensory inclusion
- Intellectual inclusion
