Play structures · Diabolo

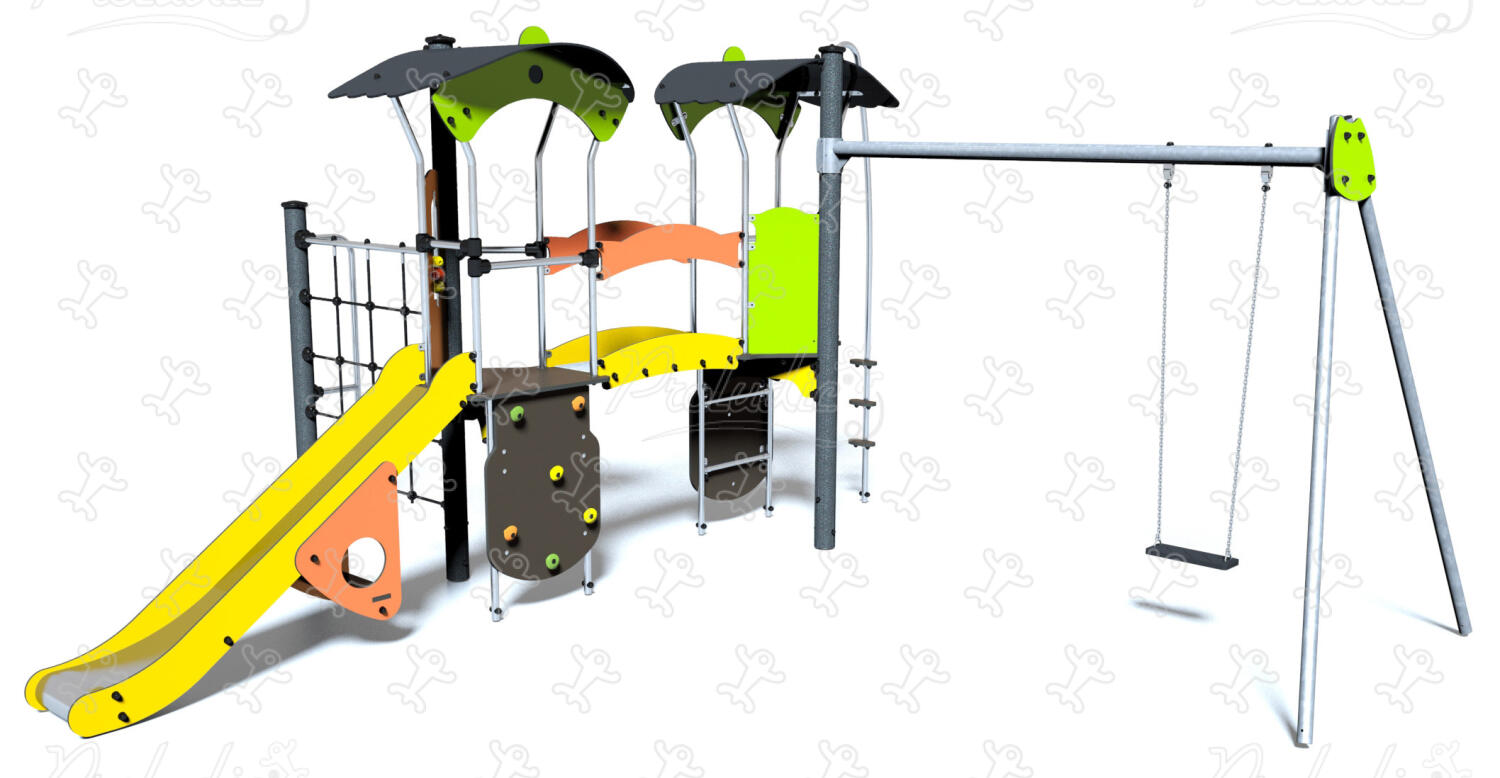

Multiplay equipment with slide, balancing activities, and swing set
J3826 · Proludic AustraliaIn canvas
Published figures
- Free height of fall
- 200 cm
- Space required
- 11.5 m²
- Impact area
- 53.5 m²
- Age range
- 3+ years
- Dimensions (L × W × H)
- 6.01 × 2.90 × 5.43 m
- Play capacity
- 20 users
As published by Proludic Australia. Park Plan never estimates a figure.
Installation and tender detail
| Install time | 20 h |
| Shipment weight | 422 kg |
| Concrete volume | 0.32 m³ |
| Components | Tower HT: 1.17m, Slide HT: 1.17m, Climbing net, Walkway, Coconut tree mast, Swing, Post, Post ladder, Climbing wall, Seat, Counting panel |
| Colours | GreyYellowGreenseen in product image |
Description
As published by the manufacturer: Impact area at 2m — 5 2m 11,5m².
As written by Proludic Australia, imported from their published specification.
Standards and certification
Published to AS 4685Published to EN 1176
Reproduced from what Proludic Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
| Elevated part | Free height of fall |
|---|---|
| Part 1 | 100 cm |
| Part 2 | 117 cm |
| Part 3 | 140 cm |
| Part 4 | 180 cm |
| Part 5 | 200 cm |
Accessible play
As published by Proludic Australia.
Physical inclusion, Sensory inclusion, Intellectual inclusion
