Published figures
- Free height of fall
- 118 cm
- Space required
- 40.2 m²
- Impact area
- 40.2 m²
- Age range
- 2+ years
- Dimensions (L × W × H)
- 5.13 × 3.37 × 3.04 m
- Play capacity
- 21 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | 19mm EcoCore™, European pine wood posts pressure impregnated Class 3 with Tanalith E preservative or aluminium with anodised surface treatment, High-pressure laminate HPL 17.8mm, 100% recyclable PE, UV-stabilized PES rope strands with inner steel cable reinforcement |
| Colours | REDMEDIUM GREENMEDIUM BLUEPINE WOODYELLOWMETAL GREYLIME |
Description

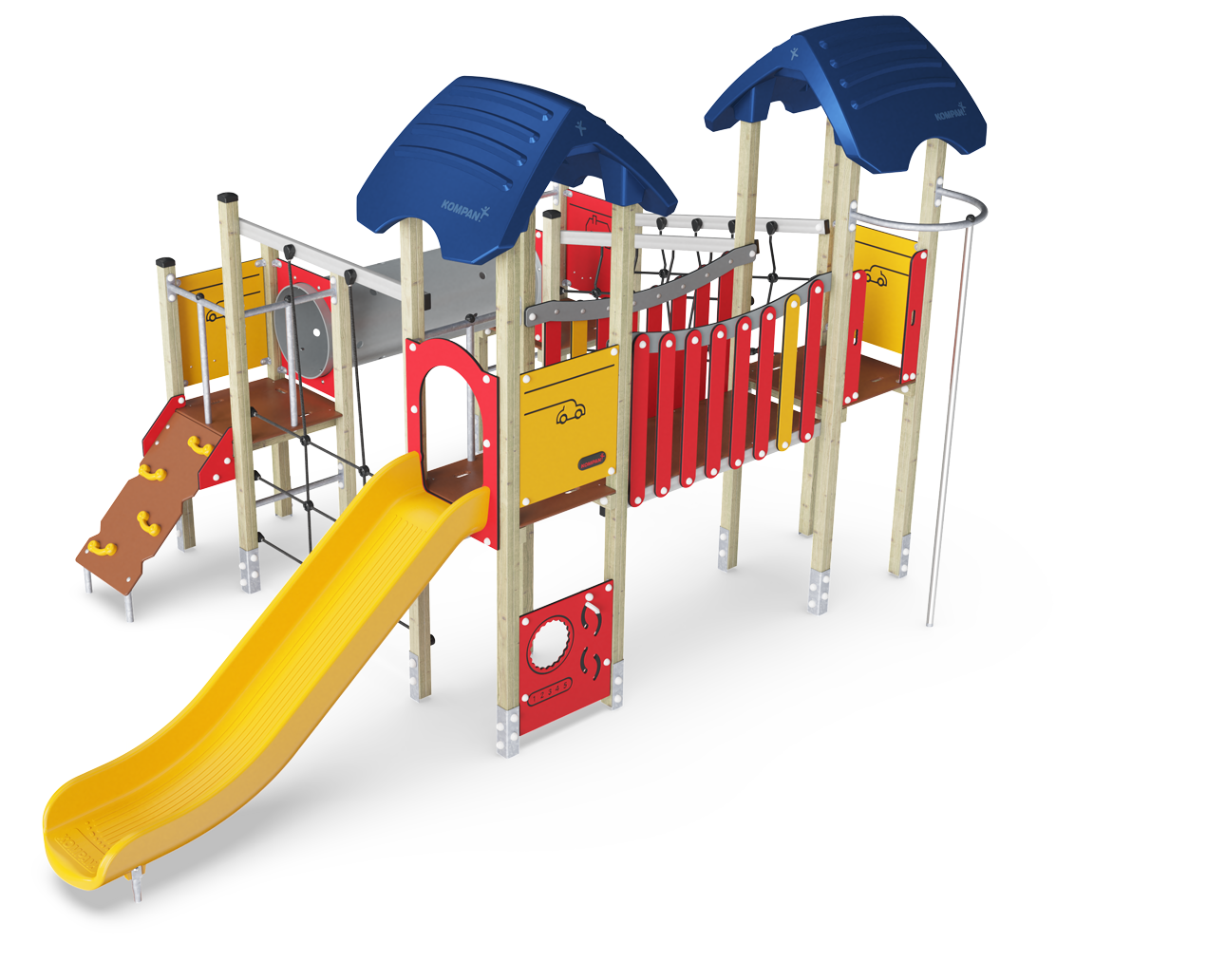

This four-tower play structure offers varied creative play for a lot of children. The first tower can be reached via an inclined climbing wall with steps offering a supported climb up to a higher level. From here a tunnel leads to the play net up to the next level. The fireman's pole offers a fast egress to the ground. Alternatively, a bridge can be crossed from where a classic slide can take the child to the ground or the child can pass the net with big meshes back to start. The level changes and inclinations of the structure train the child's sense of balance and spatial awareness which are crucial for judging distances in day-to-day life, for instance, when crossing the road.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Warranty
up to lifetime| Circular HDPE | Lifetime |
| Aluminum | 15 years |
| Pinewood | 10 years |
| Ropes & Nets | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
