Published figures
- Free height of fall
- 276 cm
- Space required
- 75.7 m²
- Impact area
- 75.7 m²
- Age range
- 4+ years
- Dimensions (L × W × H)
- 8.55 × 5.08 × 4.10 m
- Play capacity
- 36 users
As published by Kompan Australia. Park Plan never estimates a figure.
Installation and tender detail
| Materials | EcoCore, PP, galvanized steel, stainless steel, PES rope, PE |
| Components | Curly climber, Tower net, Wackle bridge, Timer, Hammock, Curved slide, Accessible stairway |
| Colours | REDMEDIUM GREENTEALLIMEORANGEMEDIUM BLUEBEIGEDARK BLUEBROWN |
Description

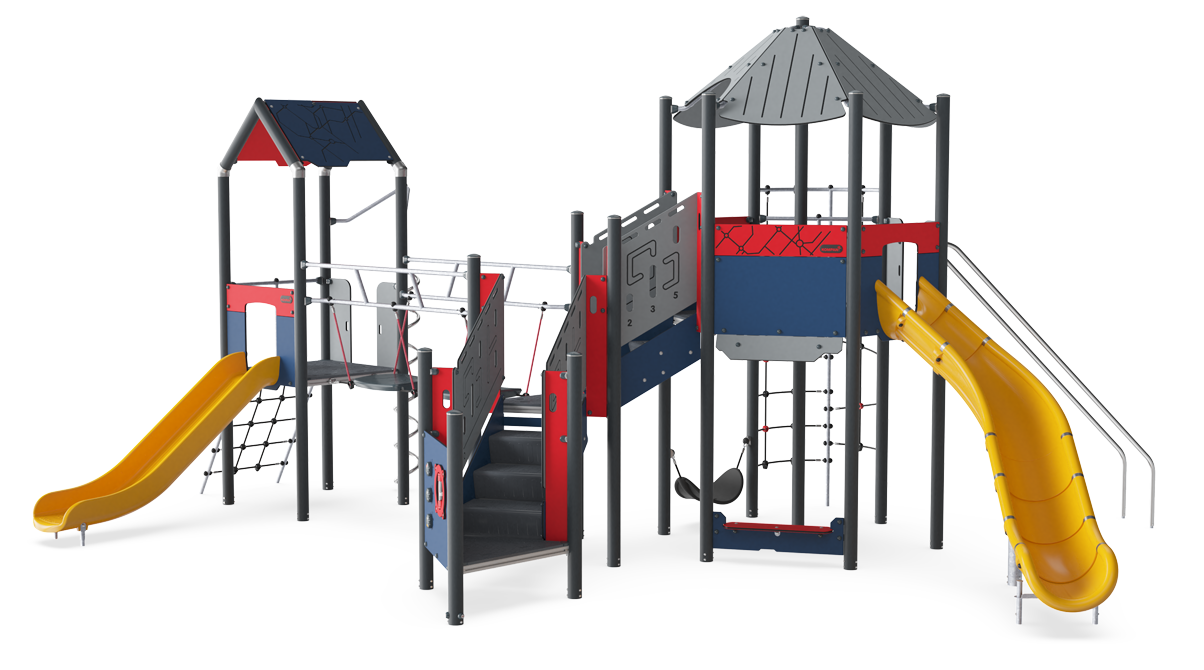

The play unit offers many levels of play. Taking the inclined climbing net up to the lower platform, children can take the stomach-tickling slide down to the ground or enjoy the rotating movement of the Curly Climber back to the ground. An alternative route is to venture onto the wackle bridge, using the full physical concentration on balancing to the platform of the stairway. The second half leads to the roomy top of the mega deck, perfect for groups to socialise and play on an elevated level. From here they can choose their way to the ground on either, a curved, bumpy slide or a daredevil pair of banister bars at full speed. An alternative route up to the mega deck platform is up the curved tower net where climbing will challenge both physical and coordination skills. Under the platform a nice seat and a rocking hammock makes a meeting point for all.
As written by Kompan Australia, imported from their published specification.
Standards and certification
Published to AS 4685Certified to AS 4685 by TÜV
Reproduced from what Kompan Australia and the certifier published. Park Plan does not assess or verify compliance with any standard.
Accessible play
As published by Kompan Australia.
Accessible stairway: Physical: climbing the accessible stairway is for all and supports cross coordination as well as arm and leg muscles. Social-Emotional: room for active breaks and adult helpers. An inclusive space.
Warranty
up to lifetime| Circular HDPE | Lifetime |
| PP Decks | 10 years |
| Post | 10 years |
| Ropes & Nets | 10 years |
| Spare Parts Guarantee | 10 years |
Terms as stated by Kompan Australia.
